DPB-260HL Flat-Plate Automatic Blister Packing Machine for Capsules Pills Candy Tablets
DPB-260HL Flat-Plate Automatic Blister Packing Machine for Capsules Pills Candy Tablets
DPB-260HL Flat-Plate Automatic Blister Packing Machine for Capsules Pills Candy Tablets

Model: DPB-260HL Flat-Plate Automatic Blister Packing Machine for Capsules Pills Candy Tablets

Feature:

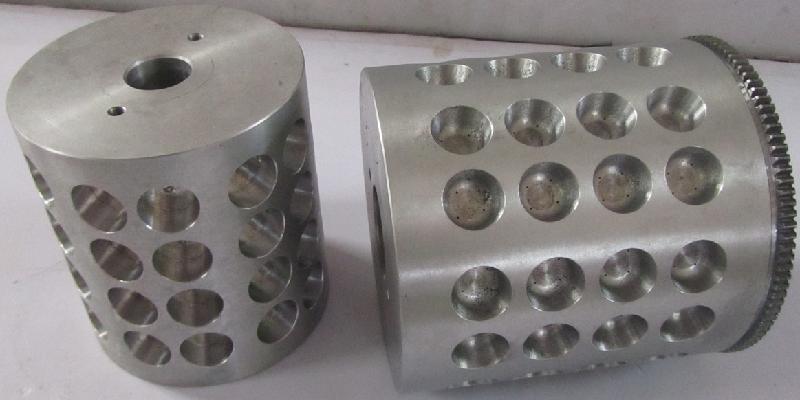

 1) Mould is changeable: This is improved design on basic of traditional model of DPB250GH, the mould can be used
both old model and this new model, is good choice for old customer for replacement.
2) Mould base installation and adjustment: Continue to use lathes type of track and screw to adjust, new design to protect
 the medicine drop inside of machine, easy and convenient to clean.
3) Forming device, heating sealing device, batch number device all adopt pushing from side to change the mould, to make
sure convenient mold changing.
4) Adopt servo motor traction, easy setting, easy to equip with photocell register device.
5) Machine is detachable structure, easy transportation. PVC and ALU foil adopt air shaft, easy operation and maintain.

Purpose:

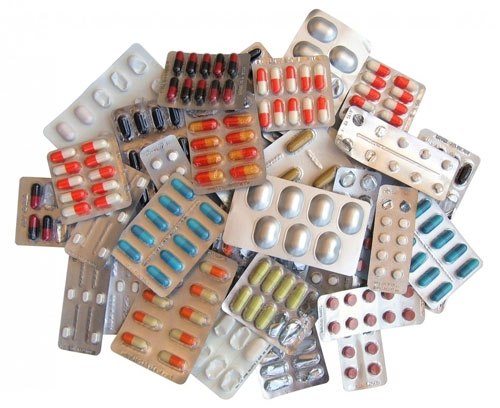

It is the newest high precision capsules and pills/tablets packing machine in current pharmacy industry. It is widely used
for capsule, tablet, honey pills in pharmaceutical industry, for milk tablet, candy, chocolate in food industry, for injector,
syringes, pins, small component ect. In electron or hardware industry as all kind of shapes of ALU-ALU, ALU
plastic, paper-plastic combined packing.

Technical Parameters

Model No                                                                                            DPB-250 DPB-320
Punch Frequency (Times/Min) 6-60 8-35
Production Capacity (Blister/hour) 9600-12000 (Standard 80*57) 12000-15000 (Standard 80*57)
Max Forming Area & Depth (mm)  Standard 250*110*10
Max 250*200*50
25 times / min		  Standard 310*110*10
Max 310*200*50
25 times / min
Stroke (mm) 20-120 20-120
Standard Blister Size (mm) 80*57, 80*35, 95*65, 105*42, 105*55 (customized)
Air Supply 0.5-0.8 MPa 0.15 CBM/min
Total Power  6 KW 6 KW
Voltage 220/380 V 50 Hz 220/380 V 50 Hz
Main Motor Power 1.5 KW 1.5 KW
PVC Thickness (mm) 0.15-0.5*260 0.15-0.5-320
PTP Aluminum Foil Thickness 0.02-0.035*260 0.02-0.035*320
Dialysis Paper (mm) 50-100 g/m2*260 50-100 g/m2*320
Mould Cooling Cold Water
Dimension (mm) 3000*720*1600 3000*780*1640
Weight (KG) 1700 1900
