Model: NJP1000D Automatic Capsule Filling Machine Factory Price
Description
This machine is designed and further improved on the base of original full auto. Capsule filling mac-hine from home and aboard, with high technology and exclusive performance, its function can reach international leading level, it is an ideal equipment for capsule and medicine in pharmaceutical ind-ustry.
Features:
1) Good-looking appearance, exquisite workmanship, ease of operation, simplicity of use.
2) Stowage seat and measuring plate are designed as one unit to make measuring plate and stowage rod without deviation phenomenon, avoid friction phenomenon between stowage rod and measuring plate, improve its precision highly, furthermore, it delays the machine's life greatly.
3) Ineligible capsule can be eliminated automatically(qualified rate not included), the medicine in the capsule can be recycled and be reused, thus it can increase greatly economic efficiency.
4) Simplicity and convenience of dismantling , installation and clean, various models of mould can be replaced each other, the mould of 800 model and 1000 model as well as 1200 model can be replaced mutually on the same machine to meet different requirement of capacity.
5) Dust collector and vacuum pipe as well as waste air pipe are installed in the inner of the machine , avoid the air pipe becoming hard, broken and leakage etc phenomenon, it is more convenient to clean the platform. Furthermore, it accords GMP the requirement that medicine can not contact with organic material.
6) The cap of stowage rod is made of stainless steel to replace original plastic cap to void breaking phenomenon; in the other hand, the screws and caps on the platform lesser to make the whole appearance more good-looking.
Main technical parameters:
|
Model |
NJP800 |
NJP1000 |
NJP1200 |
|
capacity (capsules/min) |
800 |
1000 |
1200 |
|
NO.of die holes |
6 |
8 |
9 |
|
capsule size |
NO. 00-5 |
|
filling precision |
>98% |
|
dosing precision |
Better than the stipulation of State Pharmacopoeia |
|
power |
380V 50Hz three-phase with four wires |
|
power |
3kw |
|
noise |
<80dB(A) |
|
vacuum |
0.04-0.06Mpa |
|
air pressure |
75m3/h 0.4Mpa |
|
suction |
700m2/h 2x105pa |
|
overall dimension |
970x820x1900mm(LxWxH) |
|
net weight |
900kg |

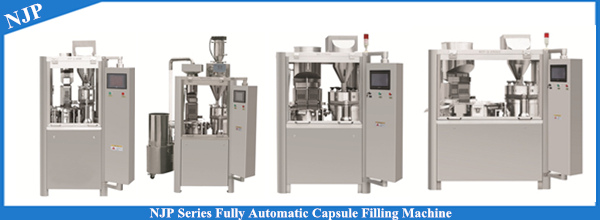

Machine Details: Automatic Capsule Filling Machine
