Model DR301 Fast Automatic Lateral Labeling Machine for Carton Paper Box Cardboard Box Sticker Adhesive Labeling Computer Cellphone Packing
Functional Features
(1) Applied to the box corner labeling on the box side and upper plane labeling, to preventing the box being opened.
(2) High precise labeling, stepper motor or servo motor drive the label, the label go around the deviation mechanism to prevent the label move from left to right; The eccentric wheel technology is applied in the traction mechanism, traction label does not slip, to ensure that the label is send out Accurately.
(3) Sturdy and durable, with three lever adjustment mechanism, make full use of the stability of the triangle;
(4) High stability, PLC( Panasonic ), touchscreen( Panasonic ), the needle eye( Panasonic ) and label detecting electric-eye(Germany Leuze) composed high-grade electric control system, supporting equipment operate for 7 × 24 hours ;
(5) Simply adjustment, it has six degrees of freedom can be adjusted, the conversion between the different products become simple and time-saving;
(6) Flexible application, the labeling machine can be used alone or connect assembly line to realize production, the layout of production field is brief;
(7) Intelligent control, automatic photoelectric tracking, it has three functions: the labeling machine won’t labeling when there is empty; it will correct when there is no label; it can detect the label. To prevent missing labels and
labels wasteful;
(8) The operating interface of touch-screen, it is Entirely in Chinese notes and perfectly fault prompt functions, various parameters adjustment is fast and simple, easy to operate;
(9) Powerful functions, with the function of counting products quantity, electricity-saving, point out the production number, parameter setting protection function, it is convenient to product and manage
(10) Optional features and components: Thermal coding;deliver products automatically; gather the products automatically(consider with products); etc
Technical Parameters DR301 Auitomatic Lateral Labeling Machine
|
Parameter Name |
Specific Parameter Values |
|
Labeling Accuracy |
± 1mm (except for products & labels' error) |
|
Labeling Speed |
60 to 150 pcs / min (related to products' size) |
|
Applicable Products' Size |
Length: 40mm ~ 500mm; Width: 30mm ~ 100mm;Height:15mm~300mm |
|
Applicable Label's Size |
Length: 15mm ~ 200mm; Width(backing paper): 15mm ~ 180mm; |
|
Machine's Size |
Approximately 3000mm × 800mm × 1650mm
(length × width × height); |
|
Power supply |
220V/50HZ |
|
Total Weight |
Approximately 350Kg |
|
Applicable label’s inner diameter |
Ø76mm |
|
Applicable label’s outer diameter |
Ø 320mm |
|
Voltage |
220V |

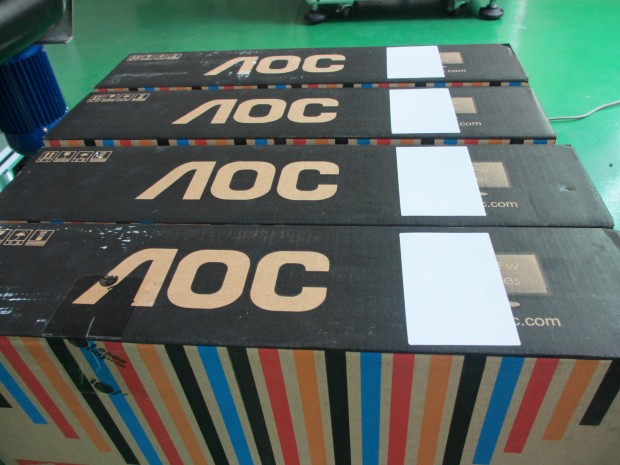

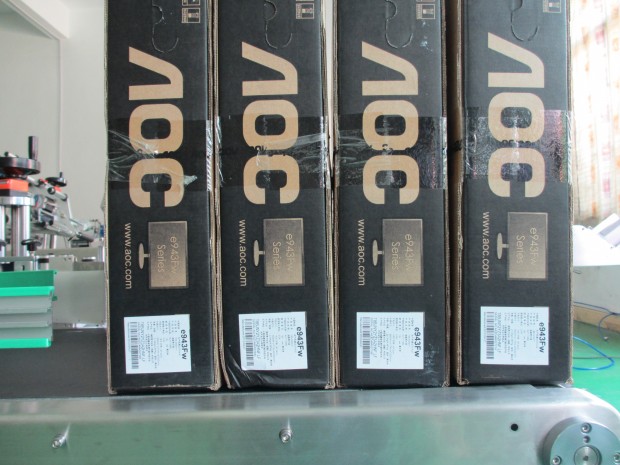

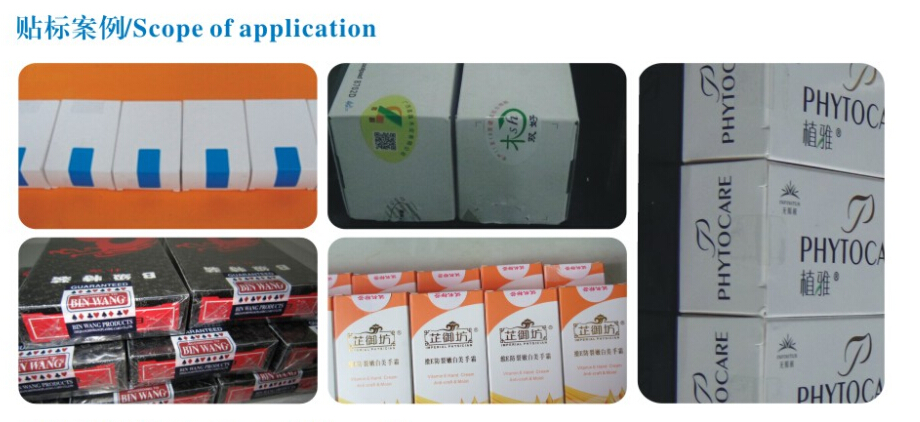

Samples: Auitomatic Lateral Labeling Machine
.jpg)
.jpg)
.jpg)
Other buying terms
1. Packing condition: plywood case
2. Delivery time: 15-20working days after receive the deposit.
3. Payment term: TT, 30% deposit, balance before delivery.
4. Delivery term: FOB Shenzhen
5. Loading port: Shenzhen, China
6. Quality guarantee: The seller will provide free spare parts along with the machine.
7. Overseas Service and commissioning: If technician is requested from buyer, the seller will send the technician to user’s site for 7 days, the round international air ticket, Hotel and food would be arranged by buyer’s, and the buyer should offer USD 100.00/day for technician for extra days.
