New Condition Semi Automatic Metal Tube Filling And Folding Closing Machine Made in China
New Condition Semi Automatic Metal Tube Filling And Folding Closing Machine Made in China

Model: New Condition Semi Automatic Metal Tube Filling And Folding Closing Machine Made in China


Structural features

the filler quality easy to adjust, the quality is turntable, the computation precision is higher, stability is well. If Instead pedestal that is apply in all kinds of metal tubes, finished figure is beauty and trim, the seal is tightness. This machine adopt the high-quality stainless steel material to make of contacting the material.

Application

used for fill liquid material into metal tube with fixed quantity and fold the tube end. It is widely used for pharmaceutical,cosmetic, foods, and chemical industry. for example: Ointment, gooey, AB Glue, epoxy glue , skin oil, hair dye, shoeshine, toothpaste, etc. liquid and poultice materials.

Work Course

Manual Insert the metal tube into the index plate tube base (16 place), using the machine drive automatism locomotion, photo electricity inspect that confirm tube base have tube and then automatism filling the tube, after four-fold sealing.


Technical Parameters:
Metal tube filling and folding machine


Motor Power 1100 W Air Power 0.55-0.65MPa
Voltage AC 220V/380V 50 Hz Air consumption 0.1 m³/min
Filling Volume 10-75 ml Tube Material Metal tube
Production efficiency 30-50 pcs/min Filling  precision ≤±1%
Hose diameter 10-60 mm Weight 400 KG
Working temperature 5~50℃ Overall dimension 1000*600*1700mm

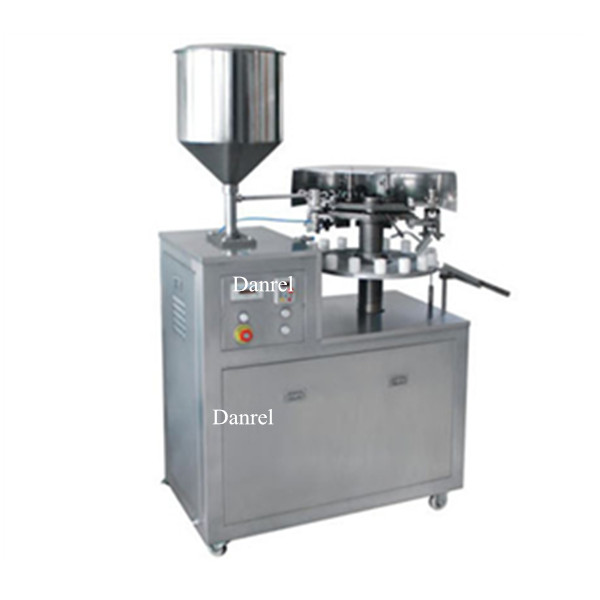

Machine Overview: Metal tube filling and folding machine

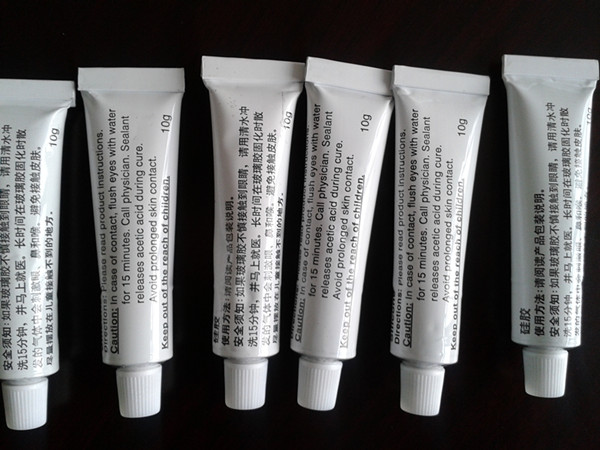

Metal Tube Samples
