High Speed Fully Automatic Tube Filling Sealing Machine for Plastic Tube Made in China
High Speed Fully Automatic Tube Filling Sealing Machine for Plastic Tube Made in China

Model: High Speed Fully Automatic Tube Filling Sealing Machine for Plastic Tube Made in China


Features

1. All parts connect with material is produced by stainless steel and ceramic which is comply with GMP
2. All parts is quick union and easy cleaning
3. Customer can easy adjust Filling capacity, Filling speed, Main machine speed
4. Filling head have protection against the drop system and will make sure no drop and drawbench.
5. AC inverter for main drive for step-less speed variation-
6. Automatic tube hopper with pneumatic system of tube insertion into rotary index table
7. Rotary index table for transferring tubes to filling, closing stations and other sections
8.Tube orientation controlled by photocell for accurate positioning of tubes
9. 50 liters capacity stainless steel hopper(jacket hopper to keep temperature for optional)
10. Hot air tool for plastic / laminated tubes (Leister make heater)
11. Air supply to air heater through independent blower
12. Batch code embossing facility within sealing jaws
13. Trimming of plastic / Al tubes at the top end
14. Double color material filling for optional
15. Saddle folding device for aluminum tube optional for client’s requirement

Main technical parameters: Fully Automatic Tube Filling Sealing Machine


Model GF400L GF400F
Tube material Metal tube, ALU tube Plastic tube, Multiple tube
Tube diameter φ13φ50 φ13φ60
Tube length 50—250 ( customized) 50—250 ( customized)
Filling volume 10—300ml/tube(adjustable) 10—300ml/tube(adjustable)
Filling accuracy ≤±1% ≤±1%
Product capacity (pc/h) 1800—4200(adjustable) 1800—4000(adjustable)
Working pressure 0.55—0.65mpa 0.55—0.65mpa
Motor power 2kw(380V/220V 50Hz) 2kw(380V/220V 50Hz)
Heat sealing power  Folding device 3kw
Overall dimension(mm) 2620×1236×1980 2620×1236×1980
Machine weight(kg) 1100 1100

Difference: Model GF-400L is for metal tubes, GF-400F is for plastic tubes

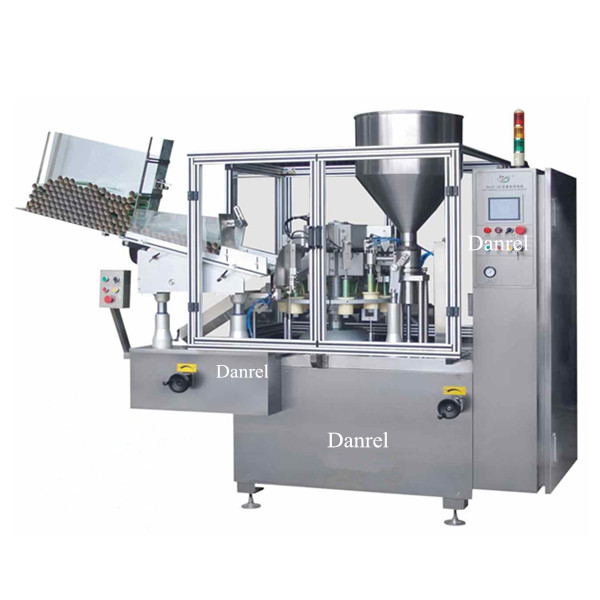

Machine Overview Fully Automatic Tube Filling Sealing Machine

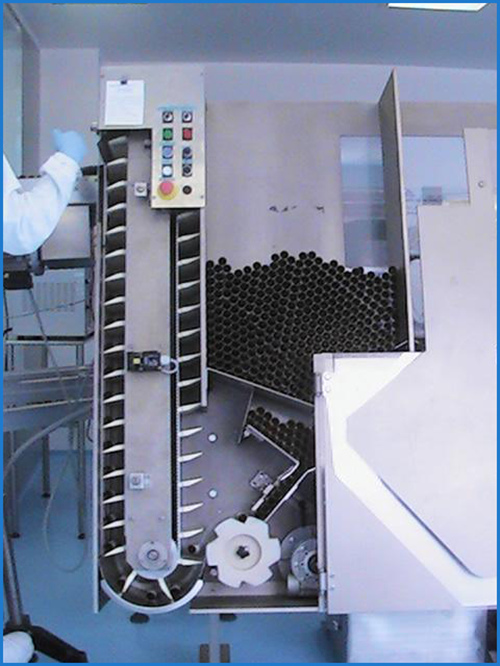

Optional Equipment tube lifting machine:

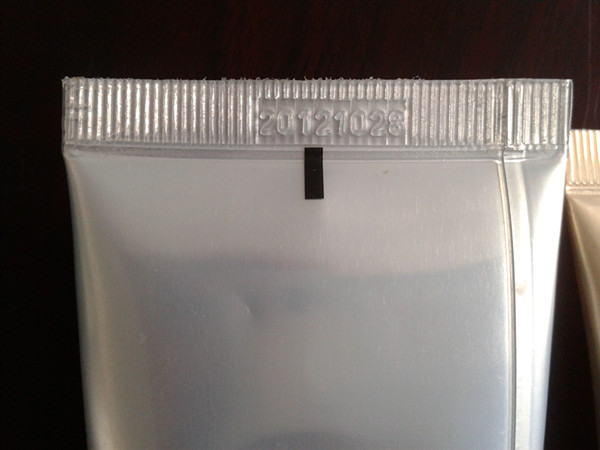

Plastic tube heat sealing:

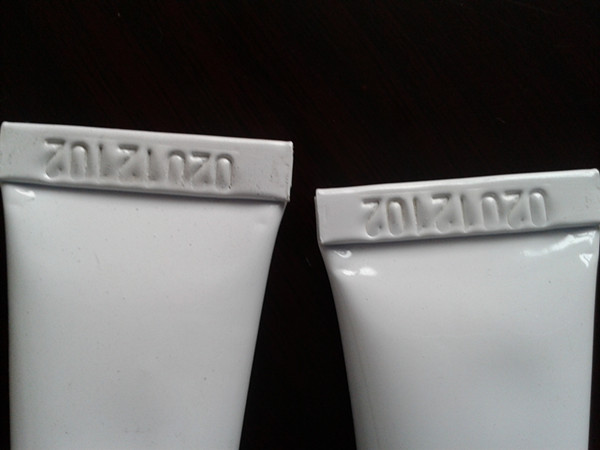

Metal tube closing:
