Electric Pneumatic Driven Semi Automatic Screw Capping machine for Glass Bottle Plastic Bottle Made
Electric Pneumatic Driven Semi Automatic Screw Capping machine for Glass Bottle Plastic Bottle Made

Model No.: XLSGJ-6100
Item: Electric Pneumatic Driven Semi Automatic Screw Capping machine for Glass Bottle Plastic Bottle Made in China


It is characterized by high level of automation, outstanding stability, easy adjustment, no need of spare parts for replacing bottle
 types or caps, which can be done only by adjusting.

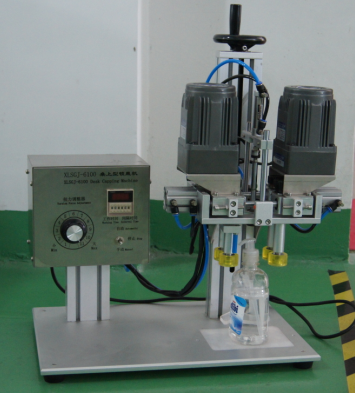

Desktop Semi Auto Screw Capping Machine

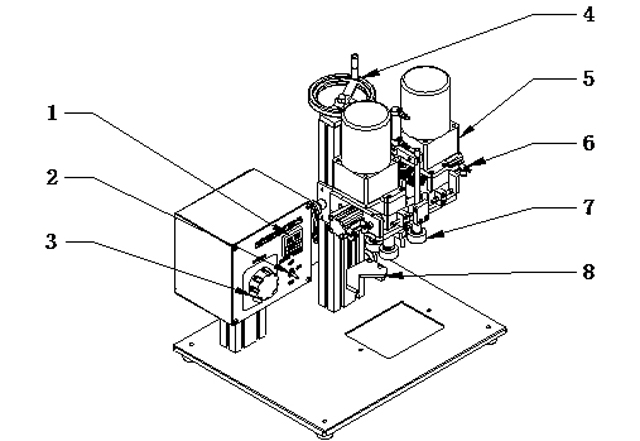

1.Control panel      2.Power switch    3.Torque regulator  4.up and down adjustment    5.capping motor   6.cylinder
7.capping head 8.position withstand

Technical Data:
Screw Capping machine

Voltage 220v, 50/60hz Max. power 40*2=80w
Machine size 57*47*68cm Packing size 68*58*78cm
G.W. / N. W. 59KG / 44KG Air pressure 4-6kg/cm2
Capping speed 20-40bottle/min Capping Torsion 4-8kgf/cm
Capping range Bottle height: 50-300mm / Cap dia.: 20-50mm


Application


It is characterized by high level of automation, outstanding stability, easy adjustment, no need of spare parts for replacing bottle types or caps, which can be done only by adjusting.

Suitable for the cap screwing of different shapes of bottles in the industries of foodstuff, pharmaceuticals, daily chemical, pesticide and cosmetics etc. Its four adjustable speed motors are used respectively for cap supplying, bottle clamping, delivering and cap screwing.
