50L Vacuum Homogeneous Emulsifier Blender Stainless Steel Mixer Tank for Cosmetic Cream Making Machi

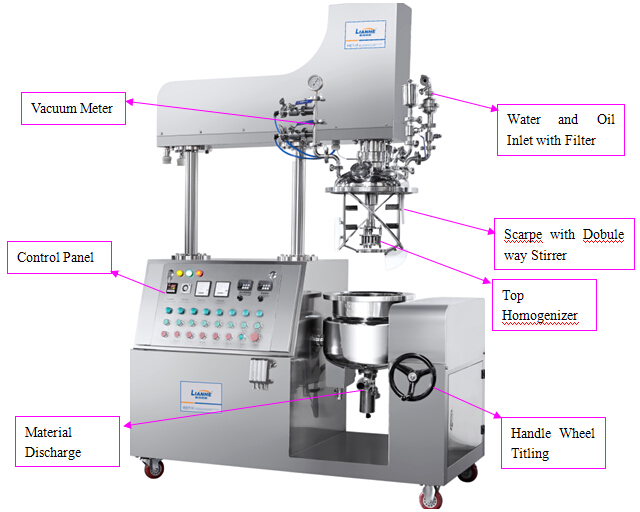

Item: 50L Vacuum Homogeneous Emulsifier Blender Stainless Steel Mixer Tank for Cosmetic Cream Making Machine
Model No.: VME-50L

Advantaged characters

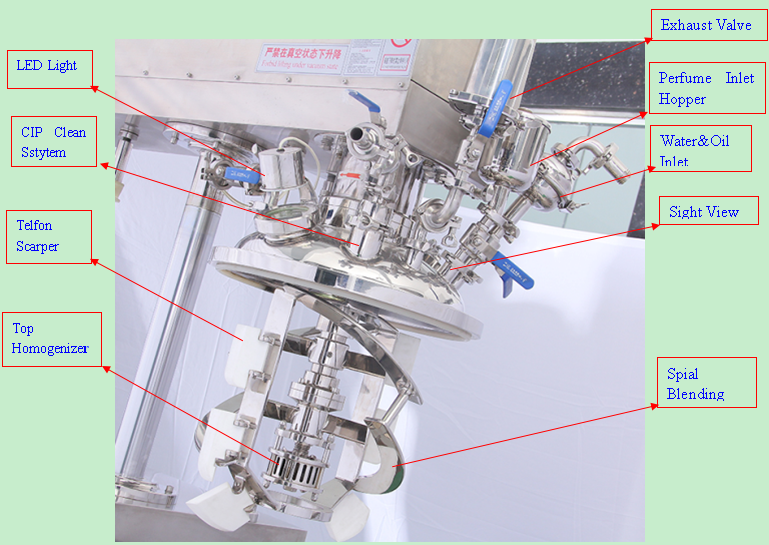

v Bidirectional blending, timer for each direction: make perfect mixing and save time;
v Spiral blending blade: make rolling mixing, very easy to clean, save cleaning time;
v Similar homogenizer to “FLUKO”  German: make pretty fine and smooth product with high gloss;
v “BURGMANN”Mechanical sealing;
v Hydraulic discharge system: smooth and steady pour out, safe for worker;

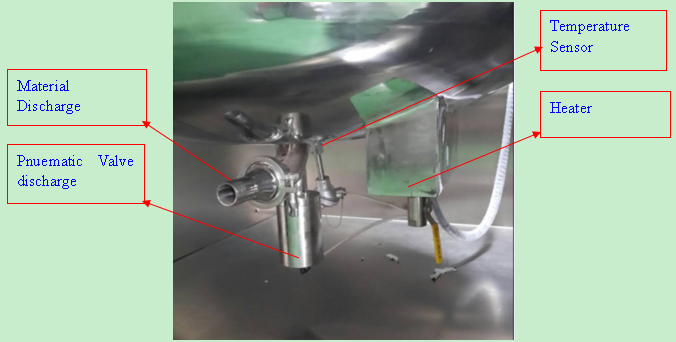

v Bottom pneumatic valve: easy operate to discharge, no dead corner in pot;
v Clean In Position System: Automatic operation, cardan sprayer;
v Air filter to quit vacuum: keep products away for dust in air;
v Taiwan Delta    converter, Homogenizing motor, Blender motor: “ABB”
v OMRON  Instruments;
v SCHNEIDER Electronics;
v “NSK” bearings;
v Top dispenser for water and oil pots: pre-heating and mixing, long-life

50L SPECIFICATION

Main Pot
1.1	Working Volume	Max Capacity :50L,Mim Capacity:17L	Loading Coefficient 0.8
1.2	Material of the Tank	Inner Layer :SUS 316L, 4MM Ra <0.8um
		Jacket : 304, 3MM	Insulation Media ：Polyurethane
		Outer Layer ：SUS 304, 3mm	SGS certificated
1.3	All contact part of material	SUS 316L , Ra <0.8um
1.4	Agitator Speed	0.75KW ,Speed 0-63rpm adjustable by inverter	ABB motor， Delta Converter
1.5	Homogeneous Way	Top Homogenizer	SUS316L
	Homogeneous Way
	Homogeneous coefficient	2.2KW,speed 0-3600R/M	ABB motor， Delta Converter

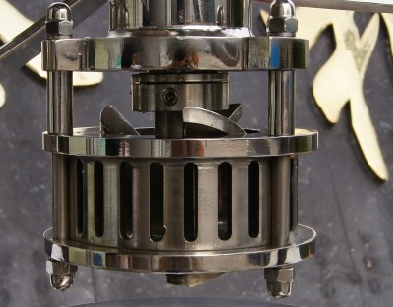

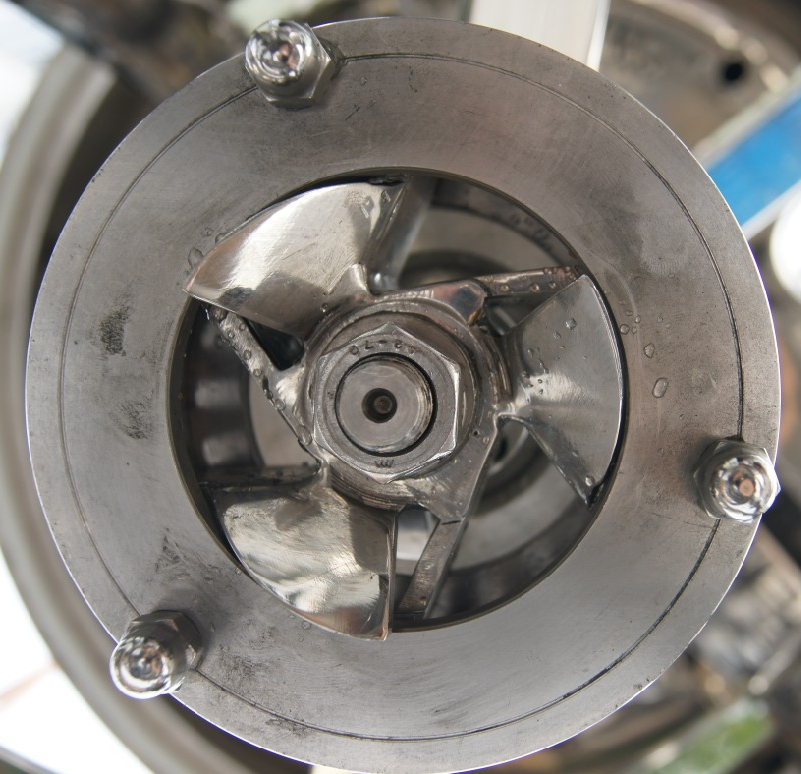

	Processing	Rotor and Stator in Wire cutting，assembled after polishing	Balance process axle
1.6	Cover	Material filter，Vacuum Pressure meter，Vacuum Exhaust Valve， Vacuum Port，sight glass light，Vision window，inlet， sight glass with wiper and bulb, rotary CIP heads, hopper；Vacuum water pump unit;	Required GMP Type
1.6	Cover
1.7	Basic Structure	Three layers，，Helxi Stirrer ，Top homogenizing；water cooling - heating coat,Insulation coat,Bidirection ,Bottom product discharge	No Dead space， Sanitory Valve
1.7	Basic Structure
1.8	Vacuum Pump Type	Water ring type,0.25KW,
1.9	Heating	9 KW Electrical Heating
191	Vacuum degree	-0.09--0.02Mpa
191	Vacuum break	Via GMP filter
1.92	sealing	Adopting burgmann Machinery Seal，Japan NSK Rolling Bearing；
1.93	polishing	In&outside hygiene grades，conforming GMP standard	S320U
1.94	Power	380V,50HZ ,3 Phase

Buying Notice
1. Packing condition: plywood case
2. Delivery time: 30 working days after receive the deposit.
3. Payment term: TT, 30% deposit, balance before delivery.
4. Delivery term: FOB Shenzhen
5. Loading port: Shenzhen, China
6. Quality guarantee: The seller will provide free spare parts along with the machine.
7. High Shear Emulsification Machine
8. How about after-sale service?
(1) Maintenance will be guided by videos and Instruction Manuals.
(2)We will provide you some parts send with machine. All parts in machine are one year warranty, will be freely sent within one year if broken
(3)Overseas Service: If technician is requested from buyer, the seller will send the technician to user’s site for 7 days. The round international air ticket, Hotel and food would be arranged by buyer’s

Welcome to contact us for more information:
Email: sales@danrel.com
Skype: dgxiehecsb
Whatspp/Mobile: +86-15899697780
