Main Pot | |||
1.1 | Working Volume | Max Capacity :50L,Mim Capacity:17L | Loading Coefficient 0.8 |
1.2 | Material of the Tank | Inner Layer :SUS 316L, 4MM Ra <0.8um | |
Jacket : 304, 3MM | Insulation Media :Polyurethane | ||
Outer Layer :SUS 304, 3mm | SGS certificated | ||
1.3 |
All contact part of material |
SUS 316L , Ra <0.8um | |
1.4 | Agitator Speed | 0.75KW ,Speed 0-63rpm adjustable by inverter |
ABB motor, Delta Converter |

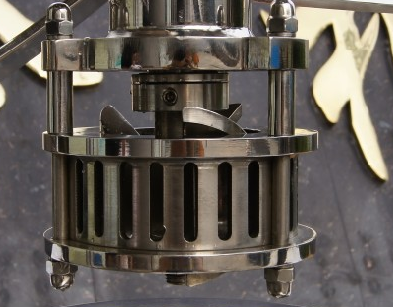

1.5 | Homogeneous Way | Top Homogenizer | SUS316L |
Homogeneous coefficient |
2.2KW,speed 0-3600R/M |
ABB motor, Delta Converter |
|

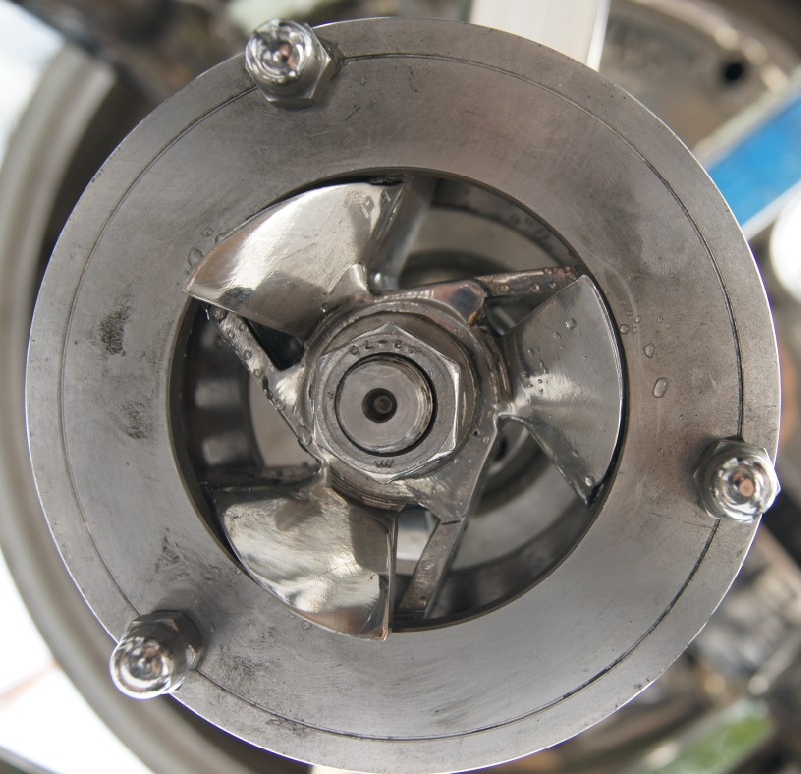

Processing | Rotor and Stator in Wire cutting,assembled after polishing | Balance process axle | |

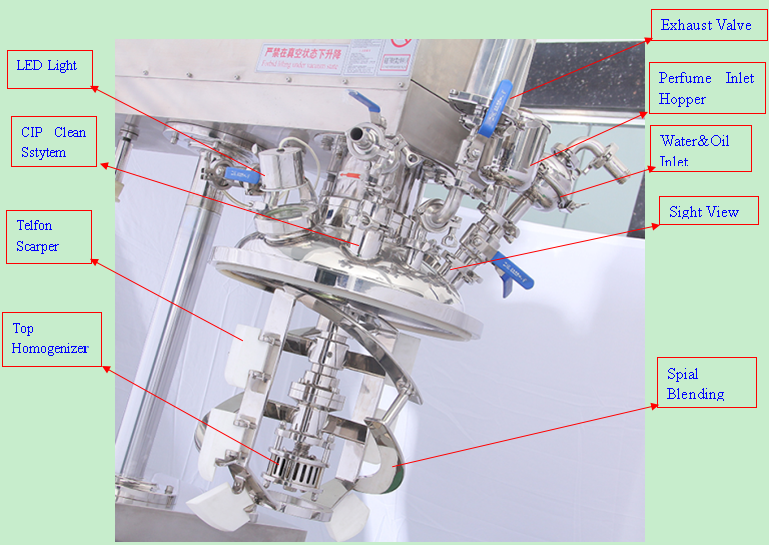

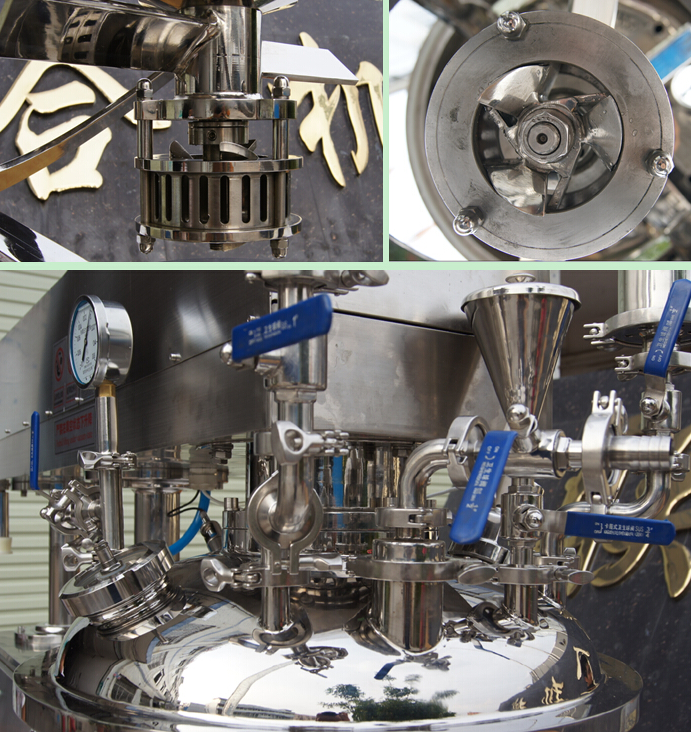

1.6 | Cover | Material filter,Vacuum Pressure meter,Vacuum Exhaust Valve,Vacuum Port,sight glass light,Vision window,inlet, sight glass with wiper and bulb, rotary CIP heads, hopper;Vacuum water pump unit; | Required GMP Type |
1.7 | Basic Structure |

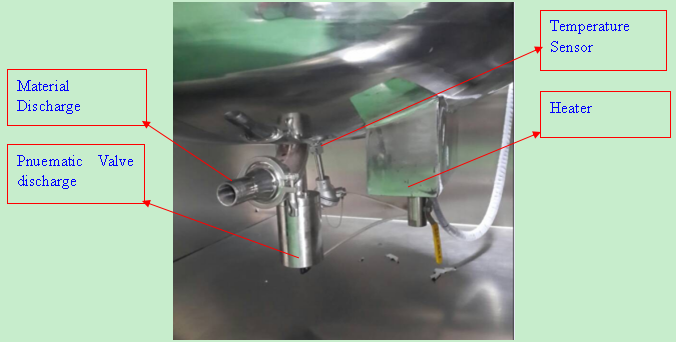

Three layers, ,Helxi Stirrer ,Top homogenizing;water cooling - heating coat,Insulation coat,Bidirection ,Bottom product discharge |
No Dead space, Sanitory Valve |
1.8 | Vacuum Pump Type | Water ring type,0.25KW, | |
1.9 | Heating | 9 KW Electrical Heating | |
191 | Vacuum degree | -0.09--0.02Mpa | |
Vacuum break | Via GMP filter | ||
1.92 | sealing | Adopting burgmann Machinery Seal,Japan NSK Rolling Bearing; | |
1.93 | polishing | In&outside hygiene grades,conforming GMP standard | S320U |
1.94 | Power | 380V,50HZ ,3 Phase |
