Advantaged characters
v Bidirectional blending, timer for each direction: make perfect mixing and save time;
v Spiral blending blade: make rolling mixing, very easy to clean, save cleaning time;
v Similar homogenizer to “FLUKO” German: make pretty fine and smooth product with high gloss;
v “BURGMANN”Mechanical sealing;
v Hydraulic discharge system: smooth and steady pour out, safe for worker;

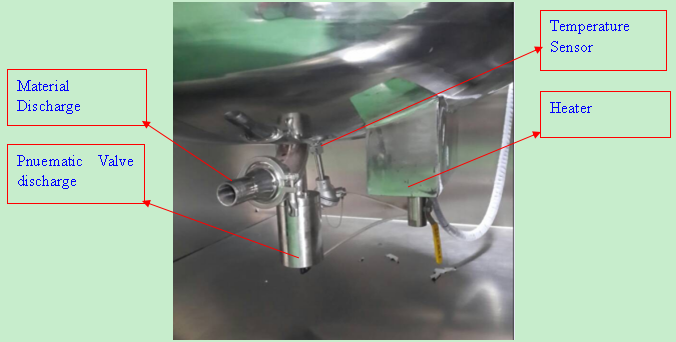

v Bottom pneumatic valve: easy operate to discharge, no dead corner in pot;
v Clean In Position System: Automatic operation, cardan sprayer;
v Air filter to quit vacuum: keep products away for dust in air;
v Taiwan Delta converter, Homogenizing motor, Blender motor: “ABB”
v OMRON Instruments;
v SCHNEIDER Electronics;
v “NSK” bearings;
v Top dispenser for water and oil pots: pre-heating and mixing, long-life
Applications
It is suitable for production of ointment and cream products in cosmetic and pharmaceutical plants. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.
Daily chemical and cosmetics industry
Baby cream, shaving cream, cream shampoo, toothpaste, cold cream, sunscreen cream, face cleanser, moisture cream, detergent, shampoo…
Pharmacy industry
Emulsion, emulsifier, ointment, syrup….
Food industry
Sauce, cheese, oral syrup, nutrient solution, infant food, chocolate, saccharine…..
Chemical industry
Latex, saponification, paint, resin, adhesives, lubricating agent….
Details:
Main Pot |
1.1 | Working Volume | Max Capacity :20L,Mim Capacity:8L | Loading Coefficient 0.8 |
1.2 | Material of the Tank | Inner Layer :SUS 316L, 4MM Ra <0.8um | |
Jacket : 304, 3MM | Insulation Media :Polyurethane | ||
Outer Layer :SUS 304, 3mm | SGS certificated | ||
1.3 |
All contact part of material |
SUS 316L , Ra <0.8um | |
1.4 | Agitator Speed | 0.55KW ,Speed 0-63rpm adjustable by inverter |
ABB motor, Delta Converter |

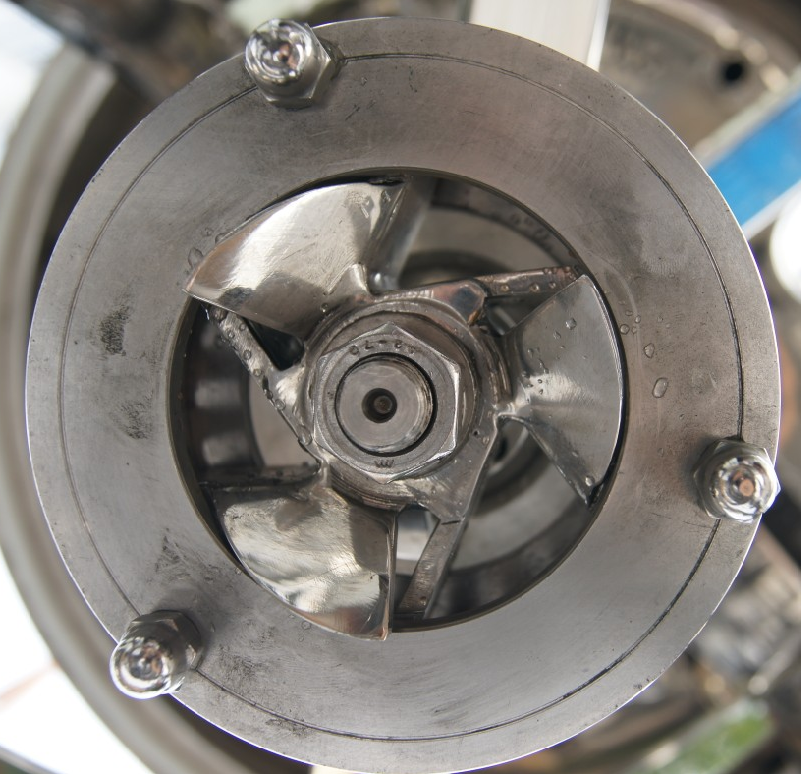

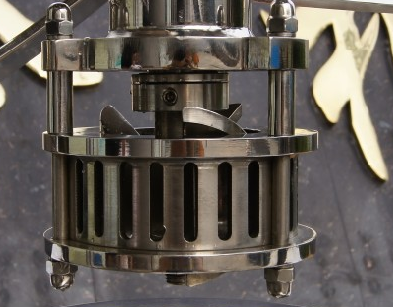

1.5 | Homogeneous Way | Top Homogenizer | SUS316L |
Homogeneous coefficient |
1.5KW,speed 0-3600R/M |
ABB motor, Delta Converter |
|
Processing | Rotor and Stator in Wire cutting,assembled after polishing | Balance process axle | |

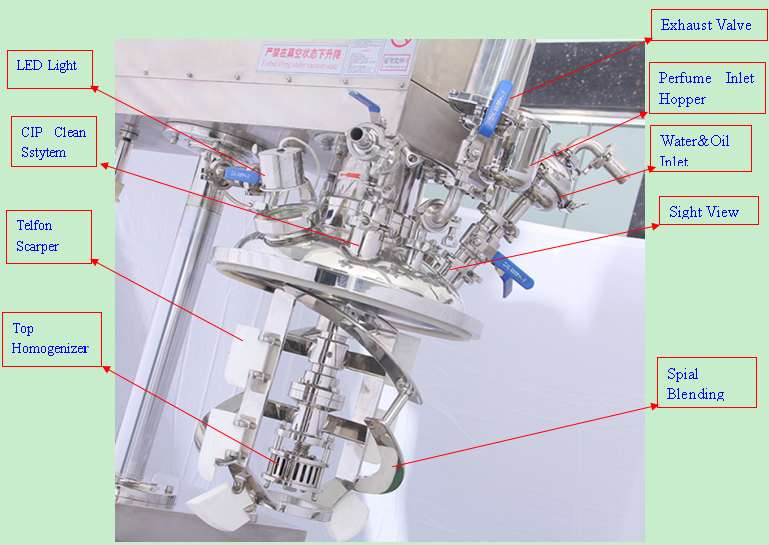

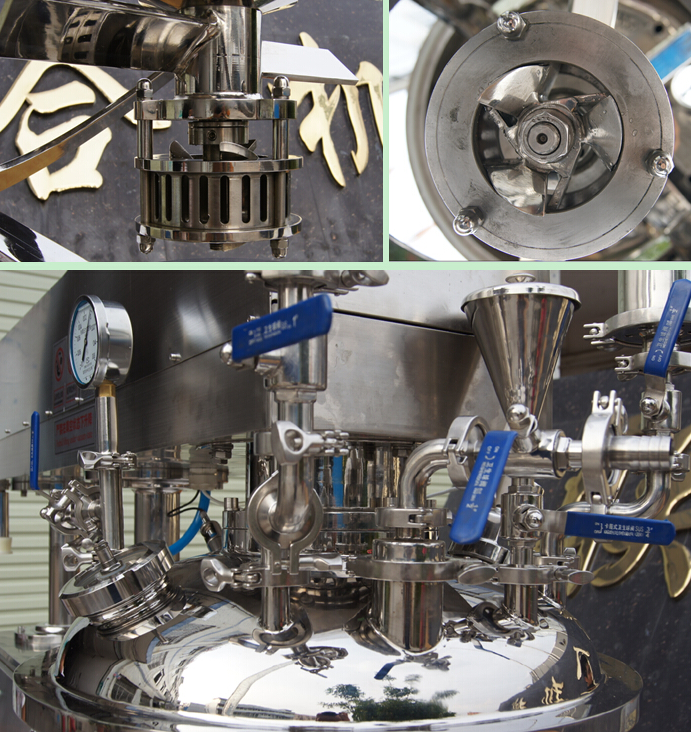

1.6 | Cover | Material filter,Vacuum Pressure meter,Vacuum Exhaust Valve,Vacuum Port,sight glass light,Vision window,inlet, sight glass with wiper and bulb, rotary CIP heads, hopper;Vacuum water pump unit; | Required GMP Type |
1.7 | Basic Structure |
Three layers, ,Helxi Stirrer ,Top homogenizing;water cooling - heating coat,Insulation coat,Bidirection ,Bottom product discharge |
No Dead space, Sanitory Valve |
1.8 |
Vacuum Pump Type |
Water ring type,0.25KW, | |
1.9 | Heating | 6 KW Electrical Heating | |
191 | Vacuum degree | -0.09--0.02Mpa | |
Vacuum break | Via GMP filter | ||
1.92 | sealing | Adopting burgmann Machinery Seal,Japan NSK Rolling Bearing; | |
1.93 | polishing | In&outside hygiene grades,conforming GMP standard | S320U |
1.94 | Power | 380V,50HZ ,3 Phase |
