Parameter Name | Specific Parameter Values |
Labeling Accuracy | ± 0.5mm (except for products & labels' error) |
Labeling Speed | 15 to 25 pcs / min (related to products' size) |
Applicable Products' Diameter | Ø 15mm ~ Ø 150mm |
Applicable Label's Size | Length: 20mm ~ 200mm; Width: 20mm ~ 220mm; |
Machine's Size |
Approximately 920mm × 470mm × 500mm (length × width × height); |
Power supply | 220V/50HZ |
Total Weight | Approximately 45Kg |
Applicable label’s inner diameter | Ø76mm |
Applicable labe’s outer diameter | Ø 240mm |
Voltage | 220V |

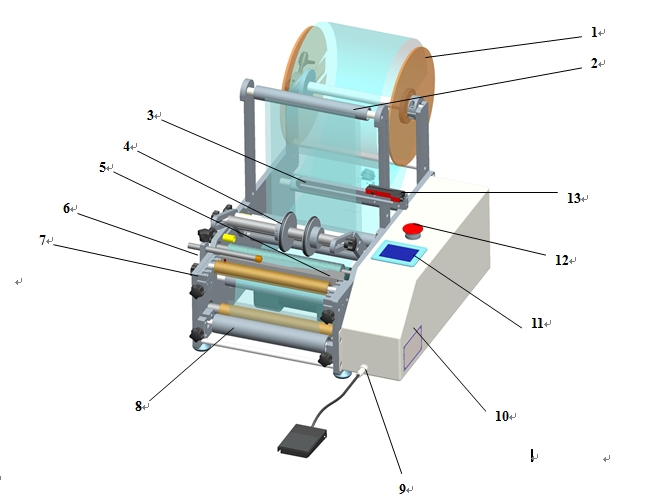

NO. | Mechanism's Name | Mechanism's Description |
1 | Feed Tray | Label volumes ready to release |
2 | Roller | For label's detour, ensure label going tightly and force distributing rationally when label been peeled |
3 | Label-detecting Electric-eye Shelf | For mounting the detecting electric-eye, and it can move up and down, left and right |
4 | Capping Mechanism | For pressuring bottles, ensure the effect of covering label, the tightness can be adjusted by setting knob on the left |
5 | Label-peeling Plate | For peeling label, has been debugged well, also can be adjusted in special situation |
6 | Positioning Device | Ensure the positin of label on the bottle, can be adjusted left and right, up and down |
7 | Bracing Piece | Can be placed at a different slot, adapting to various sizes of bottles to be labelled |
8 | Drawing Mechanism | |
9 | Pedal Connecting Interface | |
10 | Electirc Controling Box | |
11 | Human-Computer Interface | Can be used to debug each action, and each adjustment of the parameters |
12 | Emergency Switch | |
13 | Label Detecting Electric-eye | Be used to detect the distance of each two labels |

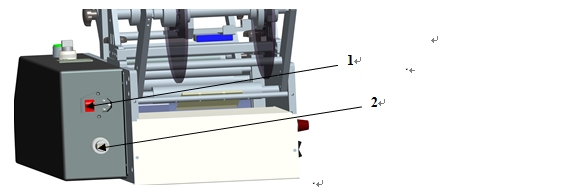

1.Power Switch Button 2 Knob of Motor Speed Regulation
Application Scope:
Application: Semi automatic Round bottle labeling machine
Applicable Label: adhesive label, adhesive film, electronic supervision code, bar code, etc.
Applicable Products: The products required to label on the circumferential surface and conical surface. Double labels and single label can be fitted.
Industry: Widely used in food, pharmaceutical, cosmetic, electronic, metal, plastics and other industries.
Suitable to label all kinds of cylindrical objects, small taper round bottles, such as cosmetic round bottles, wine bottles and so on. Can achieve full-circle / semi circle labeling, front and back labeling of one circle, and the label’s distance between front and back can be adjusted. Can be widely used in food, cosmetics, chemical, pharmaceutical and other industries.

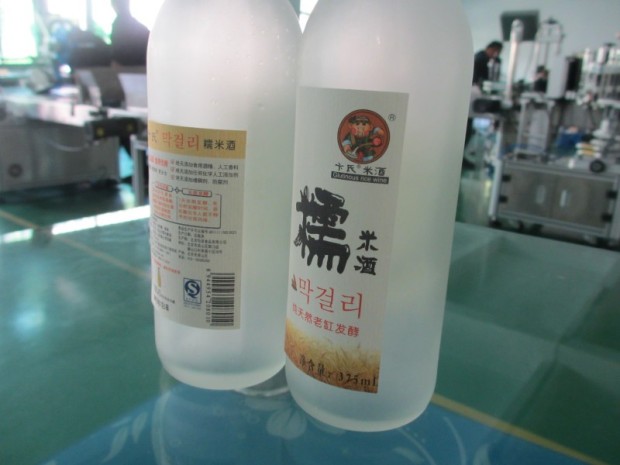

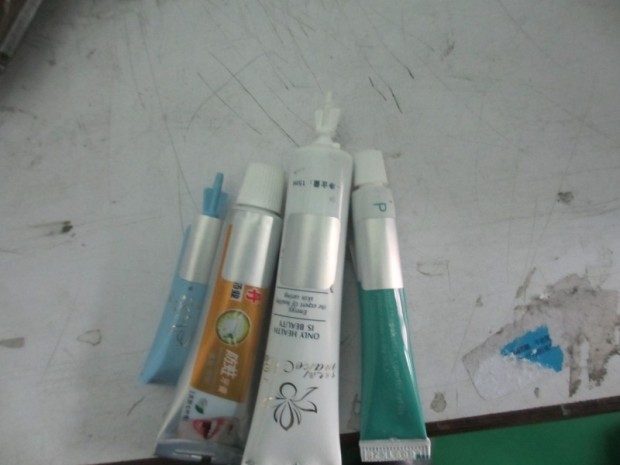

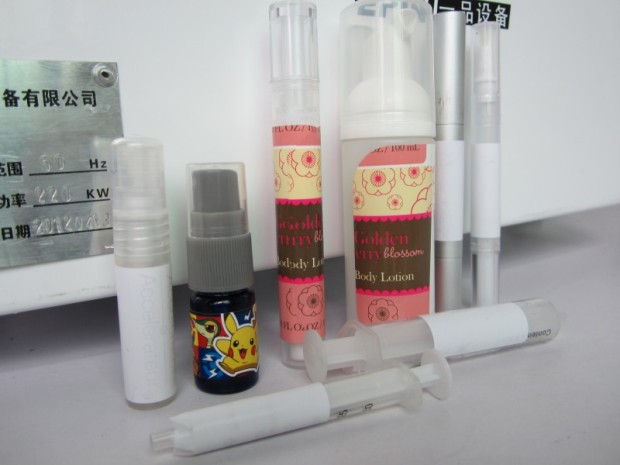

Samples
Other buying terms
1. Packing condition: plywood case
2. Delivery time: 15-20working days after receive the deposit.
3. Payment term: TT, 30% deposit, balance before delivery.
4. Delivery term: FOB Shenzhen
5. Loading port: Shenzhen, China
6. Quality guarantee: The seller will provide free spare parts along with the machine.
7. Overseas Service and commissioning: If technician is requested from buyer, the seller will send the technician to user’s site for 7 days, the round international air ticket, Hotel and food would be arranged by buyer’s, and the buyer should offer USD 100.00/day for technician for extra days.
