DR206 High Speed Oval Glass Bottle Automatic Double Heads Labeling Machine For Cocktail Neck Labeling Equipment


Application:
      Apply to the peripheral surface of the object class round bottle labeling, can be attached to a single label and double label, double label
 spacing can be flexibly adjusted, jelly water bottle round, round food cans, wine bottles and labeling, widely used in cosmetics, food , rum, beverage and other industries.

Advantages:
Configure double header, you can stick in a Stomach label and Neck label, improve production efficiency.

Features:
(1) High coincidence degree, equipped with top-press device, combined with 3-axis positioning mechanism, to prevent fluctuations of the bottle, greatly improved labeling accuracy;
(2) Automatic separation function, using spring-minute bottle organizations to effectively eliminate errors caused sub-bottle bottle itself, improve stability;
(3) Touch-screen control, human machine interface function, parameter modification intuitively, simple to switch various functions;
(4) Intelligent control, automatic photoelectric tracking, no object no labeling, no label automatic correction function automatically detects and labels to avoid wasting labels and stickers leakage;
(5) GMP, mainly made of stainless steel and advanced aluminum production, solid quality, production and compliance with GMP requirements;
(6) Optional functions:
 ① hot coding / ink jet coding;
 ② automatic feeding function (vertical Bottle Feeder);
③ automatic work piece receiving device (combination of product considered);
④ increase labeling devices;



Parameters: DR206 Automatic Double Heads Labeling Machine

Labeling accuracy: ± 1.0mm (excluding product label error)
Labeling speed: 60 to 80 / min (product size)
Applicable Products diameter: Ø 25mm ~ Ø 120mm
Applicable Label Size: Length: 20mm ~ 290mm; Width: 20mm ~ 160mm
Machine size: Approximately 1950mm × 1200mm × 1530mm (L × W × H);;
Power supply: 220V/50HZ
Total Weight: About 280Kg
Applicable label Roll inside diameter: Ø76mm
Applicable label Roll outside diameter: Ø 240mm
Voltage: 220V
Barometric pressure: 0.4 ~ 0.6Mpa

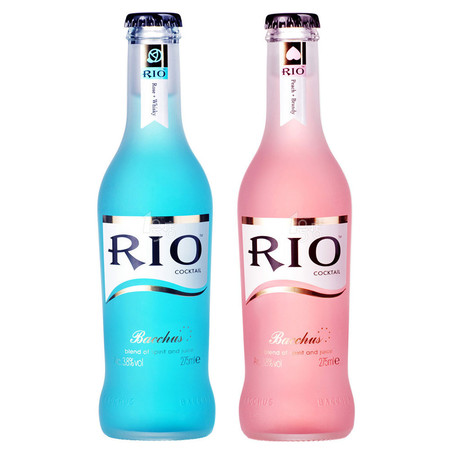

Cocktail Labeling Machine two labeling step sample

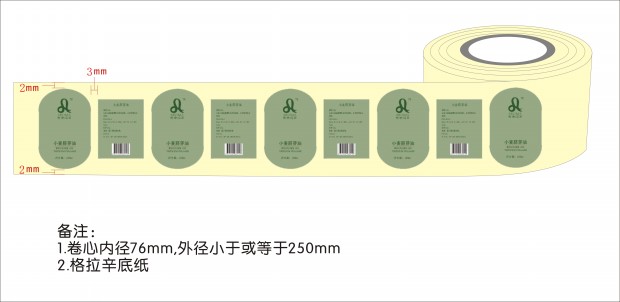

How to design the Pros and Cons labels?



1, bottom paper label material with glassine backing paper (such material toughness, anti-pull-off), and to avoid cutting the end of paper;
2, the interval between the label and the label 2 ~ 4mm, transparent and non-rectangular label label is required interval between playing a square hole 4 × 3mm
3, the label from the backing paper edge 2mm
4, label roll heart inside diameter 76 ± 1mm, diameter less than 250mm

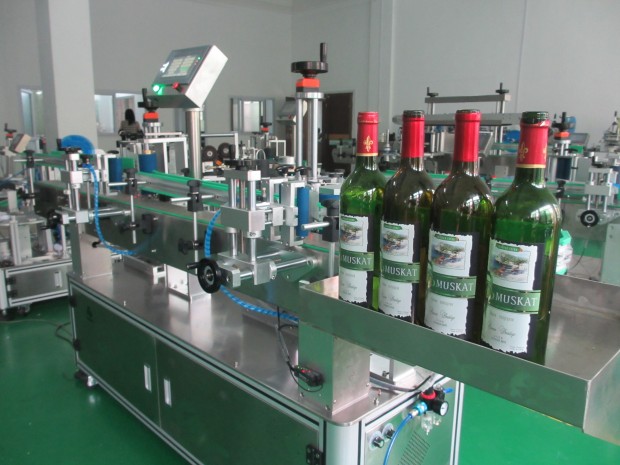

Please refer to the following picture: Automatic Double Heads Labeling Machine



Other buying terms


1. Packing condition: plywood case

2. Delivery time: 15-20working days after receive the deposit.

3. Payment term: TT, 30% deposit, balance before delivery.
4. Delivery term: FOB Shenzhen
5. Loading port: Shenzhen, China
6. Quality guarantee: The seller will provide free spare parts along with the machine.

7. Overseas Service and commissioning:  If technician is requested from buyer, the seller will send the technician to user’s site for 7 days, the round international air ticket, Hotel and food would be arranged by buyer’s, and the buyer should offer USD 100.00/day for technician for extra days.
