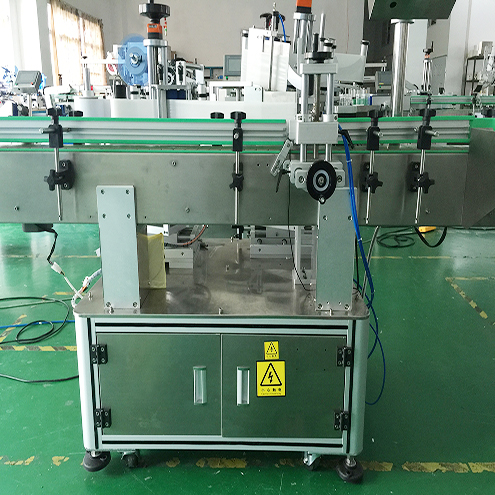

Technical Parameters: DR201 round glass bottle labeling machine
|
Parameter Name |
Specific Parameter Values |
|
Labeling Accuracy |
± 1.0mm (except for products & labels' error) |
|
Labeling Speed |
40 to 80 pcs / min (related to products' size) |
|
Applicable Products' Diameter |
Ø 25mm ~ Ø 100mm |
|
Applicable Label's Size |
Length: 20mm ~ 290mm; Width: 20mm ~ 160mm; |
|
Machine's Size |
Approximately 1950mm × 1100mm × 1300mm
(length × width × height); |
|
Power supply |
220V/50HZ |
|
Total Weight |
Approximately 185Kg |
|
Applicable label’s inner diameter |
Ø76mm |
|
Applicable label’s outer diameter |
Ø 240mm |
|
Voltage |
220V |
The following is for label model, and the special requirements and functions can be customized.
Features : round glass bottle labeling machine
◆Wide scope of application, can meet the full-circle / half-circle’s labeling of round bottles. Switching and adjustment between bottles is easy and convenient
◆High quality when labeling, with product positioning, labeling correction, label docking well, no wrinkles and no bubbles.
◆Flexible, bottles can be labeled vertically and separated automatically. The machine can work alone or be accessed to the production line.
◆Intelligent control, automatic photoelectric tracking. With the functions of no object no labeling, automatic correction when no labels and automatic label detecting, which can prevent missing labels and wasting labels.

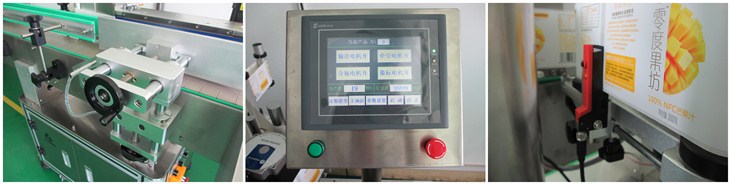

◆High stability, Panasonic PLC + Samkoon Touch Screen + Panasonic Needle Electric Eye + German Leuze Label Sensor, compose senior electric control system, support equipment to operate for 7 × 24 hours.
◆Simple adjustment: the speed of labeling, transmission, and bottles separated can be regulated stepless and adjusted as needed;
◆Strong and durable, using three adjustment mechanism for its triangle stability. The whole machine is made of
stainless steel and advanced aluminum alloy, meeting the GMP production requirements;
◆Optional functions: ①Hot coding / Spurting;
②Automatic material feeding (consider with products);
③Automatic material receiving(consider with products);
④Another labeling device;
⑤Circumferential positioning labeling;
⑥Other features (according to customers’ requirements)
.jpg)
|

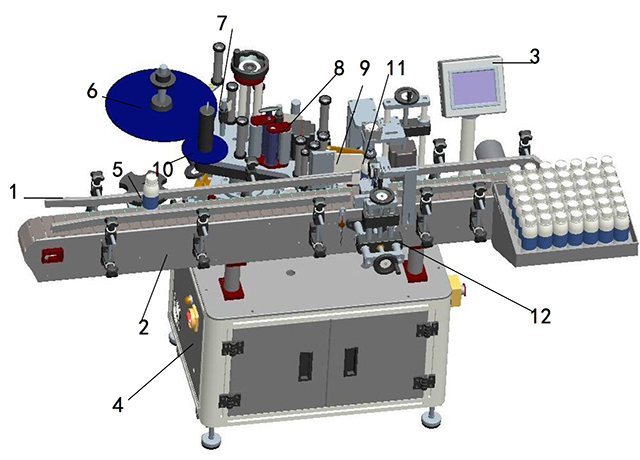

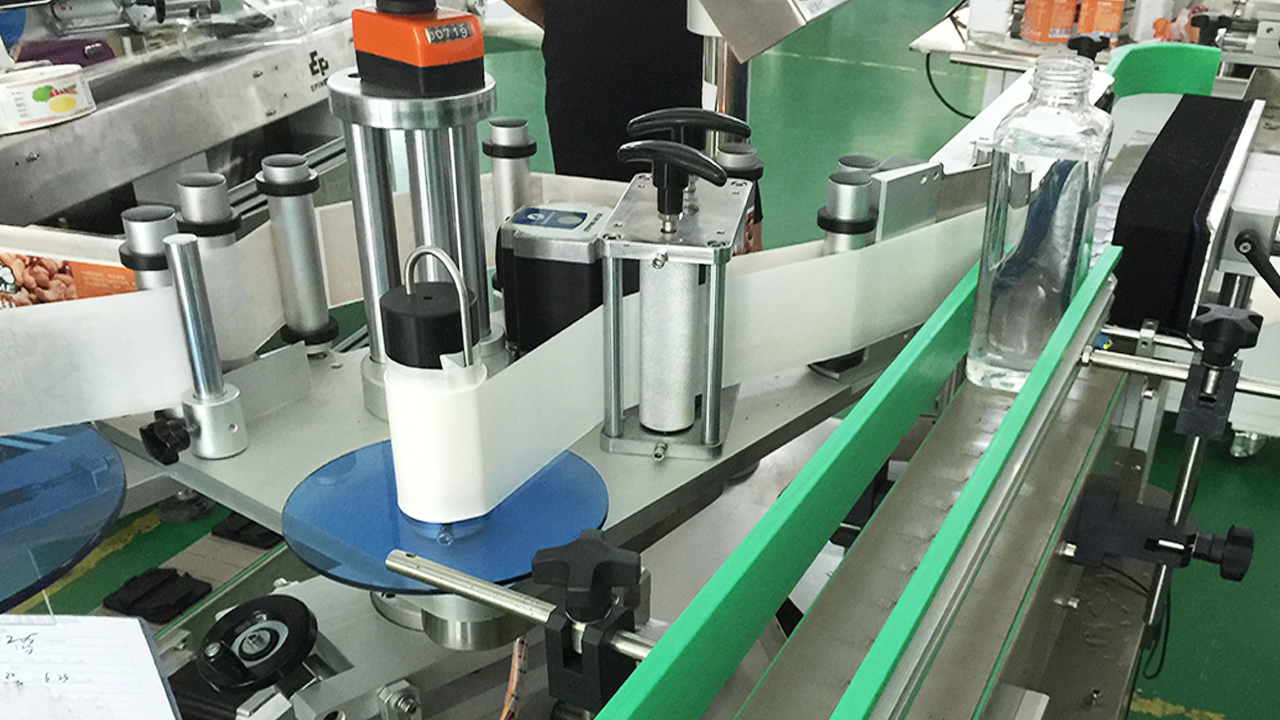

No. |
Item |
Function |
|
1 |
Guiding mechanism |
For guiding of the work-pieces, work-pieces of different sizes by adjusting the joint connecting the guide rods |
|
2 |
Transportation agencies |
The work-piece conveyor to the right for labeling and paste a good product away |
|
3 |
Touch screen |
Man-machine dialogue window, adjust various parameters |
|
4 |
Electrical box |
Labeling machine electrical control centers, arranging various controllers and PLC |
|
5 |
Bottle Separator |
By adjusting the motor speed to adjust the separation distance of the work-piece, the work-piece before the time to meet the labeling needs |
|
6 |
Trays |
Place labels |
|
7 |
Clamping mechanism |
Pressed labels, keep tabs tension, ensuring accurate labeling |
|
8 |
Traction mechanism |
Motor driven by pulling the end of paper, provide label power strip |
|
9 |
Stripping label plate |
Peel off the label. R angle formed by the label detour, effectively stripping the label |
|
10 |
Winding mechanism |
Recycled base paper |
|
11 |
Follow label bodies |
The label on the labeling label cover |
|
12 |
Positioning mechanism |
For positioning a work-piece |
Working Process
◆ core principle: put the product to the conveyor belt, into the body of the bottle, the bottle body of the product after separation, the sensor detects the product passes the signal returns to the label control systems in place to control the corresponding motor control system and sends the label to be affixed to the product labeling position, while overlying label, a label attached to the action is completed.
◆ Procedure: put the product conveyor belt (which can be accessed line) -> product delivery -> Products of distance -> Product Testing -> Product positioning -> Labeling and covered label -> collect the product labeling.
Supportive label Making
1. The distance between each two labels is 2-4mm, a 3*3 mm square hole should be punched between each two labels if the label is transparent or non-square ;
2. The distance between label and the edge of backing paper is 2mm;
3. The labels’ backing paper is made from GLASSINE material, because this paper has good toughness in order to prevent being pulled cut;
4 The inner diameter of label roll is 76mm, the outer diameter is less than 260mm, arranged in a single row.
The process of making label above should be combined with your products.

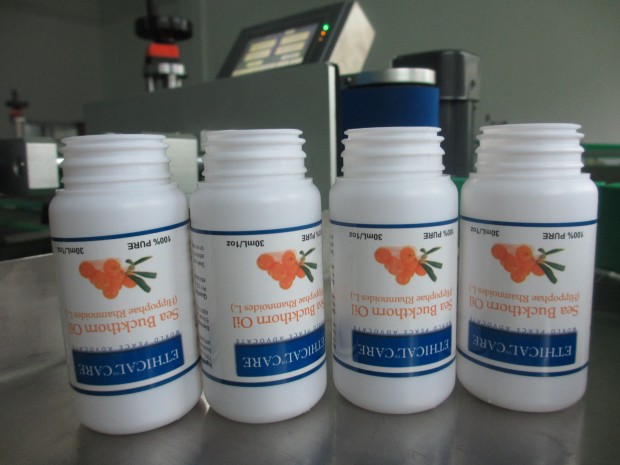

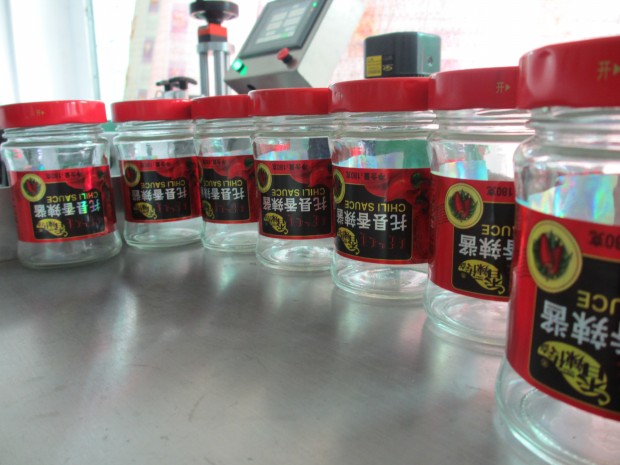

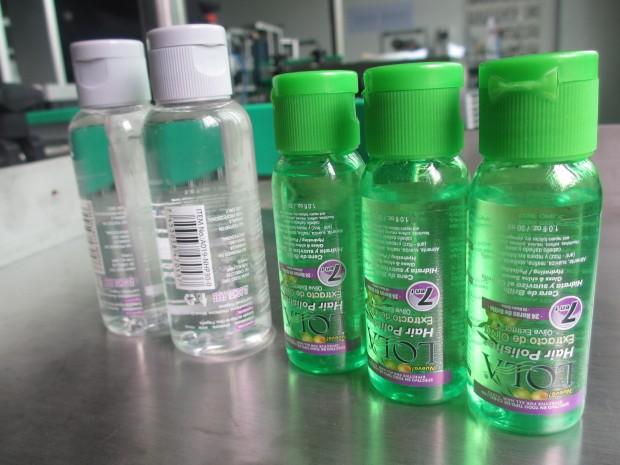

Samples Application: glass bottles, round plastic bottles labels machine
.jpg)
.jpg)
.jpg)
