Horizontal Rolling Round Objects elliptical bottle Automatic Labeling Machine for Pens Syringe

DR205 Horizontal Rolling Round Objects elliptical bottle Automatic Labeling Machine for Pens Syringe
Model No. : DR205

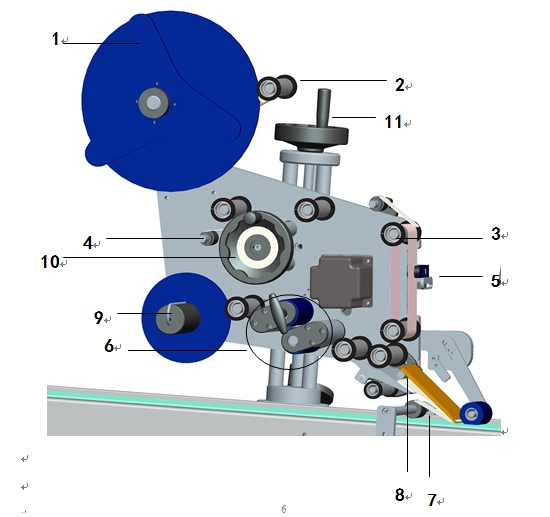

NO.	Mechanism’s Name	Mechanism's Description
1	Feed Tray	Ready to put on label volumes
2	The Brake of Feed Tray	Prevent over labeling and keep the belt’s tightness
3	Roller	For label's detour, ensure label going tightly and force distributing rationally when label been peeled
4	Shrapnel to Press the Label	Press the label to ensure the label’s tension
5	Shelf for Electric-eye	For installing detecting electric-eye and moving it front and back
6	DrawingMechanism	By pulling the backing sheet, peel off the label, the degree of tightness can be adjusted
7	Label-peeling Plate	For peeling label, has been debugged well, also can be adjusted in special situation
8	Label Pressing Mechanism	For pressing the label
9	The Material Receiving Machine	Recycle the label’s backing sheet
10	Lateral Adjustment	Adjust the left and right position of the head
11	Vertical Adjustment	Used for the head to go up and down

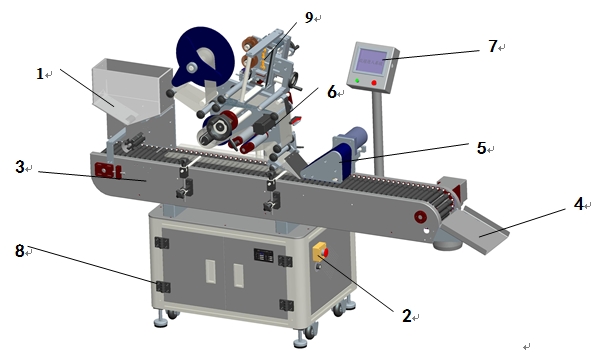

NO.	Mechanism's Name	Mechanism's Description
1	Material Separated Part	Separate the stack-up products into single layer
2	Main Switch	The general power supply for the whole machine
3	Transportation	Transport the products to the labeling position and then to the material receiving part once labeling action finishes
4	Material Receiving Mechanism	Undertake the products which have been labeled
5	Label Covering Mechanism	Press the label attached to the products
6	Labeling Head	The core component of the labeling, achieve the labeling function
7	Touch Screen	Man-machine Communicating Window, adjust all kinds of parameters
8	Electric Box	Electric control center of the machine, distributed with all kinds of controller and PLC
9	Coding Machine	Print production date and other information

Application: round Automatic Labeling Machine
Suitable to label cylindrical objects which cannot stand firm by the way of horizontal transmission and horizontal labeling. Can achieve full-circle / semi-circle labeling. Good stability and high labeling efficiency.

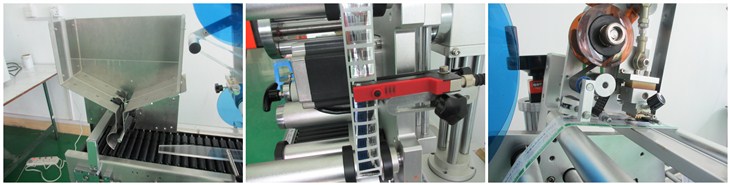

Features:

◆ High-speed, with lateral type roller conveyor mechanism and tilted conveyor, the bottles can be guided automatically, conveyed and labeled steadily. Labeling speed can be up to 300 bottles / minute, saving a lot of manpower and material resources;

◆Low rate of broken bottles, flexible bottles separated technology and flexible label covering technology, this process is smooth, broken bottles’ rate is less than one hundred thousandth;

◆High quality when labeling, with product positioning, labeling correction, label docking well, no wrinkles and no bubbles.

◆High stability, Japan Panasonic PLC + Samkoon Touch Screen + Panasonic Needle Electric Eye + German Leuze Label Sensor, compose senior electric control system, support equipment to operate for 7 × 24 hours.

◆ Intelligent control, automatic photoelectric tracking. With the functions of no object no labeling, automatic correction when no labels and automatic label detecting, which can prevent missing labels and wasting labels.

◆Safe and healthy, in accordance with GMP production requirements, mainly made of stainless steel and high quality alloy, sturdy and durable;

◆Equipped with so many functions that are useful for production management: failure warning, production counting, power saving, production number setting, parameter setting protection.

◆Optional functions:
①Hot coding / Spurting;
②Automatic material receiving(considered with products);
③Automatic feeding (According to customers’ requirements).

Technical Parameters: DR202

Parameter Name	Specific Parameter Values
Labeling Accuracy	± 1.0 mm (except for products & labels' error)
Labeling Speed	100~300 pcs / min (related to products' size)
Applicable Products' Diameter	Ø 10mm ~ Ø 30mm
Applicable Label's Size	Length: 20mm ~ 100mm; Width: 20mm ~ 130mm;
Machine's Size	Approximately 2050mm × 650mm ×1450mm (length × width × height);
Power supply	220V/50HZ
Total Weight	Approximately 200Kg
Applicable label’s inner diameter	Ø76mm
Applicable labe’s outer diameter	Ø 240mm
Voltage	220V

Single label making requirements
1. The distance between each two labels is 2-4mm;
2. The distance between label and the edge of backing paper is 2mm;
3. The labels’ backing paper is made from GLASSINE material, because this paper has good toughness in order to prevent being pulled cut;
4 The inner diameter of label roll is 76mm, the outer diameter is less than 260mm, arranged in a single row.

Option device
(1). Reader: it is to read 2D codes, bar codes and other information, establish products’ database for products’ traceebility.
(2). All-purpose Electric Eyes: General electric eyes cannot detect transparent labels, Leuze Electric Eye imported from Germany should be chose to be supportive.
(3) Ink-jet printer: Can be equipped with the mainstream ink-jet printer in the market, print at specified location on the label, which can be combined with labeling machines perfectly.
(4). Coder: Use thermal coder to print production date, expiration date, batch number and other information.

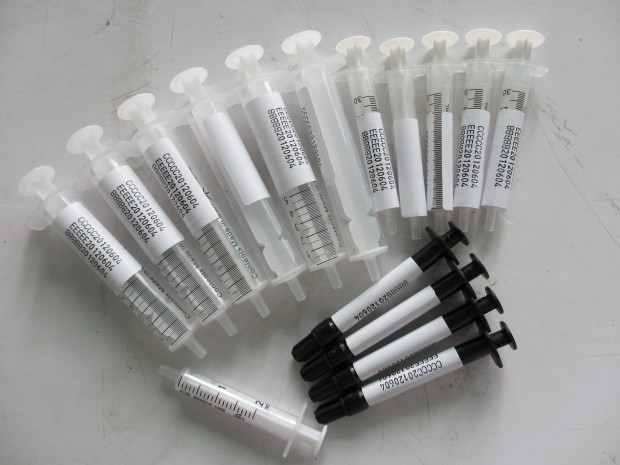

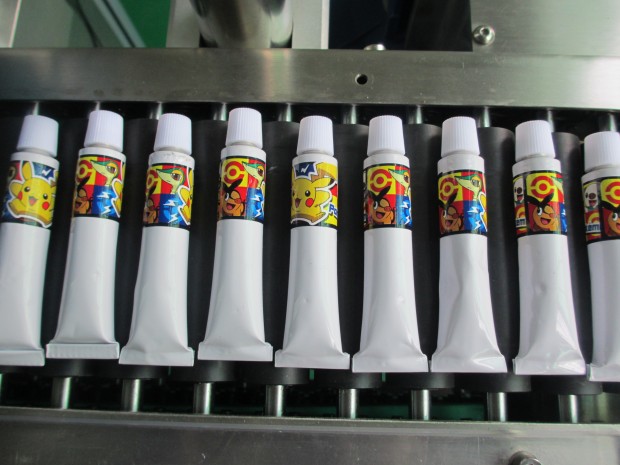

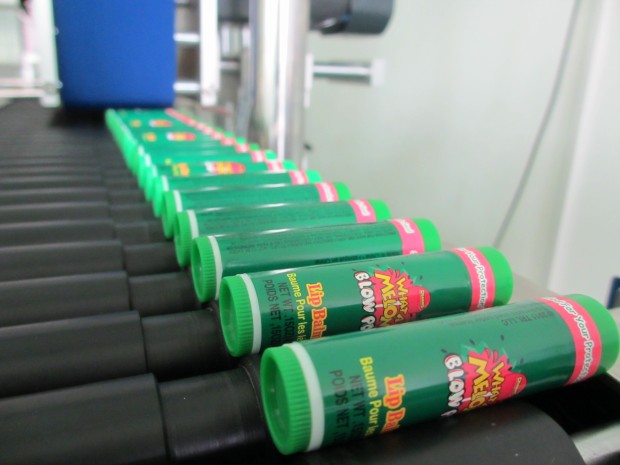

Application Samples: round Automatic Labeling Machine

Other buying terms

1. Packing condition: plywood case

2. Delivery time: 15-20working days after receive the deposit.

3. Payment term: TT, 30% deposit, balance before delivery.
4. Delivery term: FOB Shenzhen
5. Loading port: Shenzhen, China
6. Quality guarantee: The seller will provide free spare parts along with the machine.

7. Overseas Service and commissioning: If technician is requested from buyer, the seller will send the technician to user’s site for 7 days, the round international air ticket, Hotel and food would be arranged by buyer’s, and the buyer should offer USD 100.00/day for technician for extra days.

Any inquiries pls do not hesitate to contact:

Email: sales@danrel.com
Skype: dgxiehecsb
Whatspp/Mobile/Wechat: +86-15899697780
