Precision positioning round bottles cans labeling machine automatic vertical type labeler equipment

DR202 Precision positioning round bottles cans labeling machine automatic vertical type labeler equipment with CE Coding Counting

Technical Parameters Model No: DR202

The following is for label model, and the special requirements and functions can be customized.

Parameter Name	Specific Parameter Values
Labeling Accuracy	± 1.0mm (except for products & labels' error)
Labeling Speed	40 to 80 pcs / min (related to products' size)
Applicable Products' Diameter	Ø 25mm ~ Ø 100mm
Applicable Label's Size	Length: 20mm ~ 290mm; Width: 20mm ~ 160mm;
Machine's Size	Approximately 1950mm × 1100mm × 1300mm (length × width × height);
Power supply	220V/50HZ
Total Weight	Approximately 185Kg
Applicable label’s inner diameter	Ø76mm
Applicable label’s outer diameter	Ø 240mm
Voltage	220V

Features:

◆Wide scope of application, can meet the full-circle / half-circle’s labeling of round bottles. Switching and adjustment between bottles is easy and convenient

◆High quality when labeling, with product positioning, labeling correction, label docking well, no wrinkles and no bubbles.

◆Flexible, bottles can be labeled vertically and separated automatically. The machine can work alone or be accessed to the production line.

◆Intelligent control, automatic photoelectric tracking. With the functions of no object no labeling, automatic correction when no labels and automatic label detecting, which can prevent missing labels and wasting labels.

◆High stability, Panasonic PLC + Samkoon Touch Screen + Panasonic Needle Electric Eye + German Leuze Label Sensor, compose senior electric control system, support equipment to operate for 7 × 24 hours.

◆Simple adjustment: the speed of labeling, transmission, and bottles separated can be regulated stepless and adjusted as needed;

◆Strong and durable, using three adjustment mechanism for its triangle stability. The whole machine is made of

stainless steel and advanced aluminum alloy, meeting the GMP production requirements;

◆Optional functions: ①Hot coding / Spurting;

②Automatic material feeding (consider with products);

③Automatic material receiving(consider with products);

④Another labeling device;

⑤Circumferential positioning labeling;

⑥Other features (according to customers’ requirements).

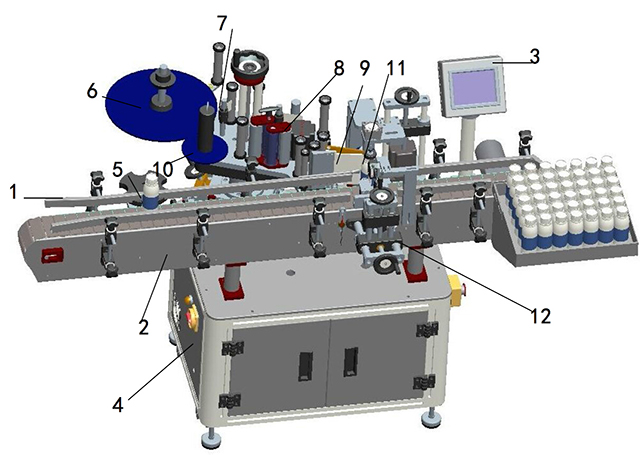

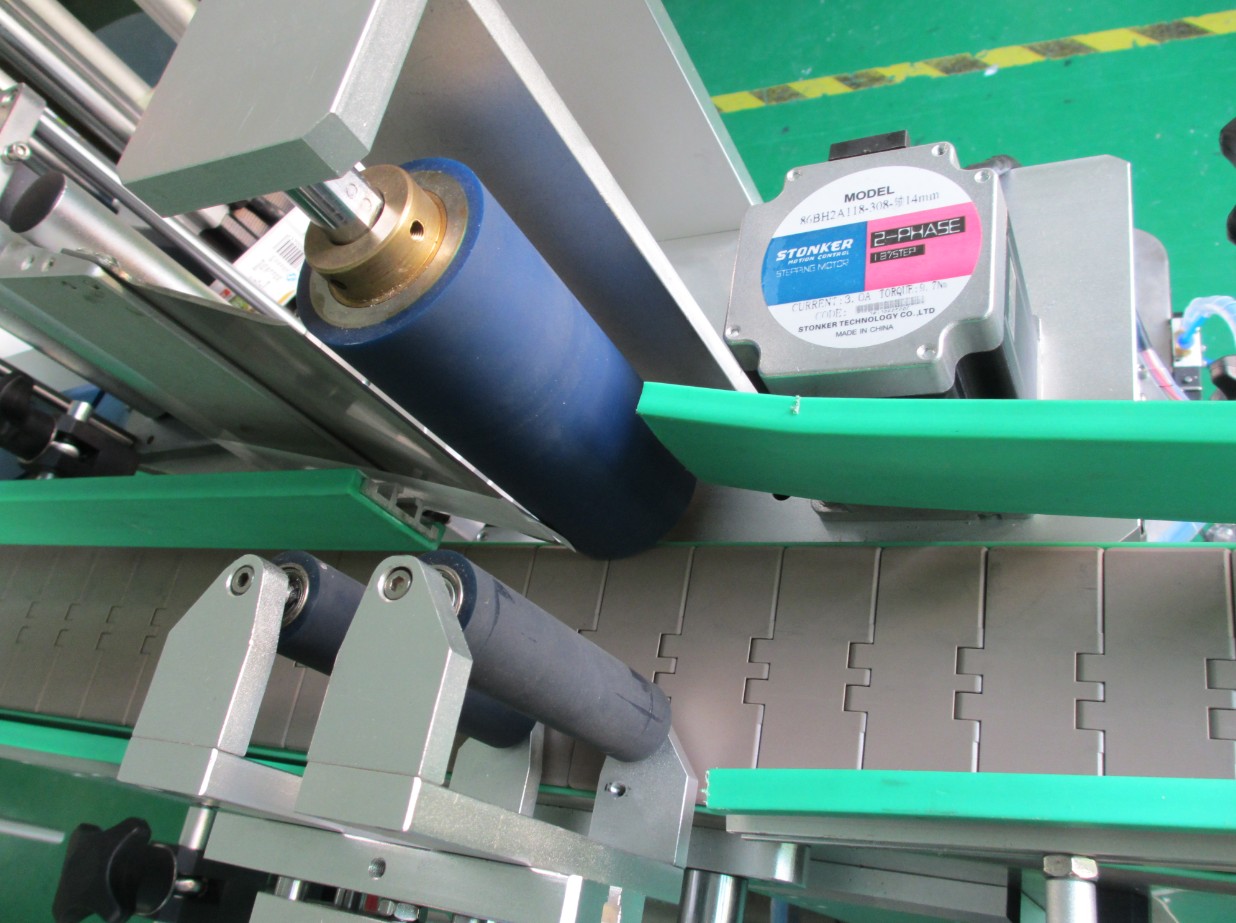

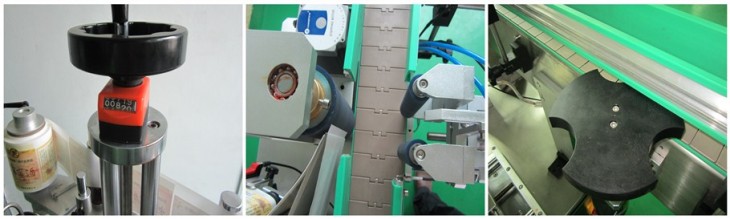

Machine Drawings:

No.	Item	Function
1	Guiding mechanism	For guiding of the work-pieces, work-pieces of different sizes by adjusting the joint connecting the guide rods
2	Transportation agencies	The work-piece conveyor to the right for labeling and paste a good product away
3	Touch screen	Man-machine dialogue window, adjust various parameters
4	Electrical box	Labeling machine electrical control centers, arranging various controllers and PLC
5	Bottle Separator	By adjusting the motor speed to adjust the separation distance of the work-piece, the work-piece before the time to meet the labeling needs
6	Trays	Place labels
7	Clamping mechanism	Pressed labels, keep tabs tension, ensuring accurate labeling
8	Traction mechanism	Motor driven by pulling the end of paper, provide label power strip
9	Stripping label plate	Peel off the label. R angle formed by the label detour, effectively stripping the label
10	Winding mechanism	Recycled base paper
11	Follow label bodies	The label on the labeling label cover
12	Positioning mechanism	For positioning a work-piece

Working Process: automatic round bottle labeling machinery
◆ core principle: put the product to the conveyor belt, into the body of the bottle, the bottle body of the product after separation, the sensor detects the product passes the signal returns to the label control systems in place to control the corresponding motor control system and sends the label to be affixed to the product labeling position, while overlying label, a label attached to the action is completed.

◆ Procedure: put the product conveyor belt (which can be accessed line) -> product delivery -> Products of distance -> Product Testing -> Product positioning -> Labeling and covered label -> collect the product labeling.

Supportive label Making
1. The distance between each two labels is 2-4mm, a 3*3 mm square hole should be punched between each two labels if the label is transparent or non-square ;
2. The distance between label and the edge of backing paper is 2mm;
3. The labels’ backing paper is made from GLASSINE material, because this paper has good toughness in order to prevent being pulled cut;
4 The inner diameter of label roll is 76mm, the outer diameter is less than 260mm, arranged in a single row.
The process of making label above should be combined with your products.

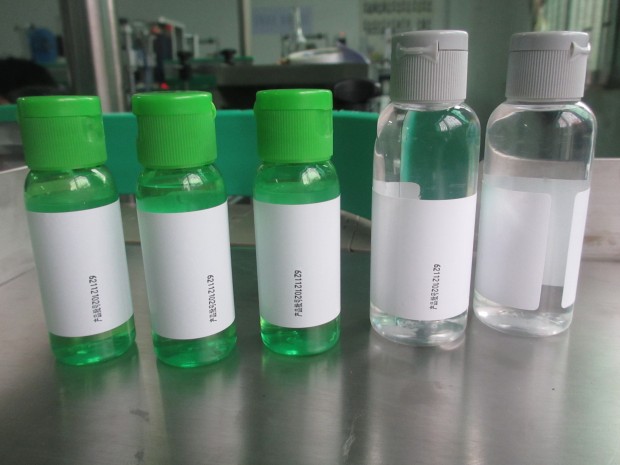

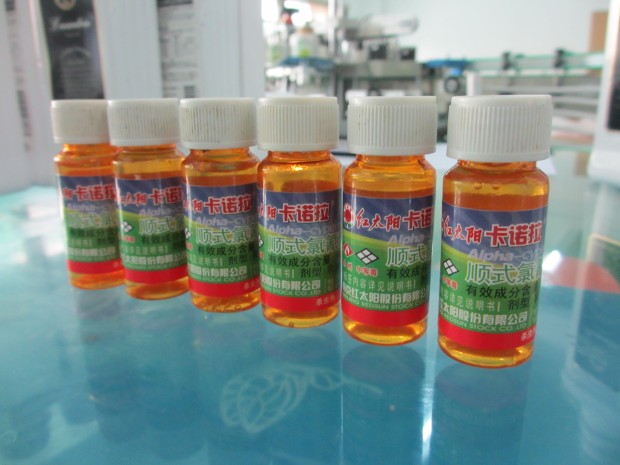

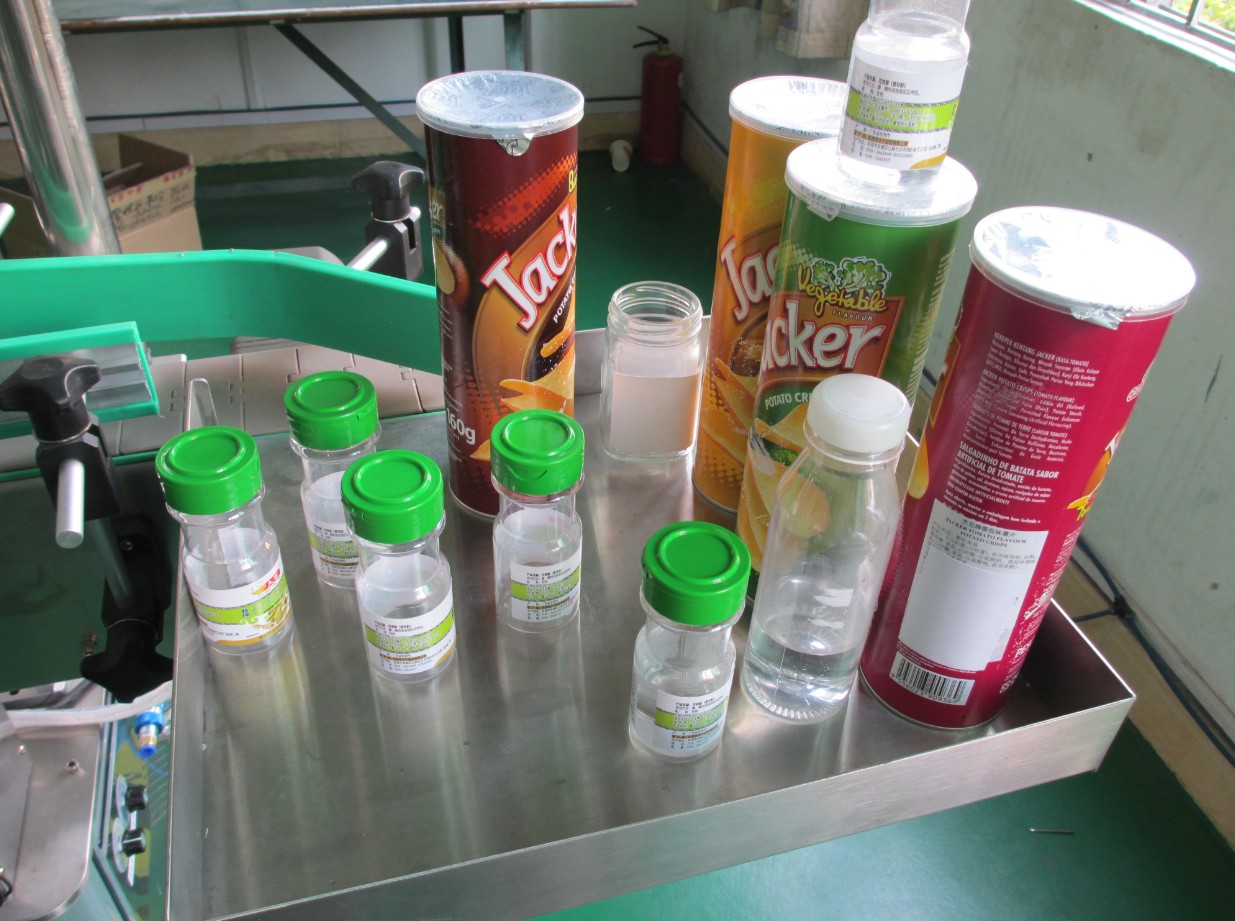

Application Samples automatic round bottle labeling machinery

Other buying terms

1. Packing condition: plywood case

2. Delivery time: 20-30 working days after receive the deposit.

3. Payment term: TT, 30% deposit, balance before delivery.
4. Delivery term: FOB Shenzhen
5. Loading port: Shenzhen, China
6. Quality guarantee: The seller will provide free spare parts along with the machine.

7. Overseas Service and commissioning: If technician is requested from buyer, the seller will send the technician to user’s site for 7 days, the round international air ticket, Hotel and food would be arranged by buyer’s, and the buyer should offer USD 100.00/day for technician for extra days.

Any inquiries pls do not hesitate to contact:

Email: sales@danrel.com
Skype: dgxiehecsb
Whatspp/Mobile/Wechat: +86-15899697780
