Model No.: DR203
Item: Customized red wine round bottle labeling machine high speed round glass plastic bottles made in china automatic labeller

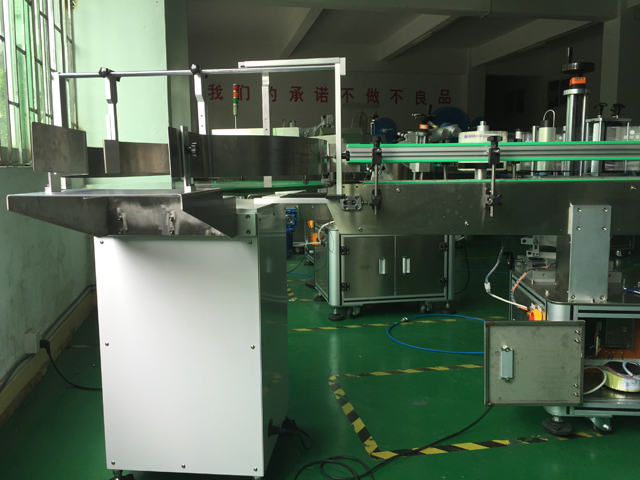

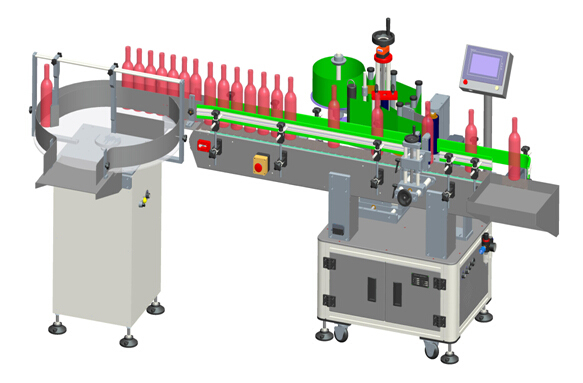

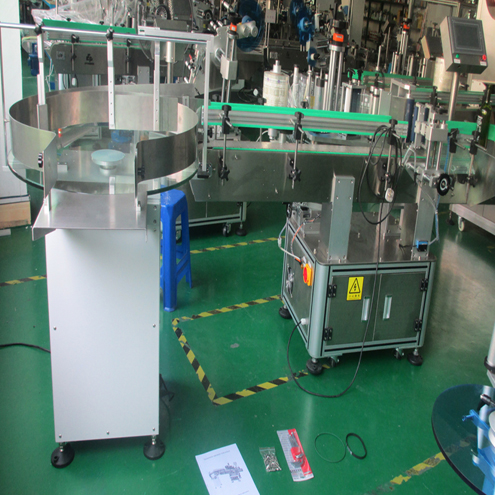

.jpg)
.jpg)
.jpg)
.jpg)
Technical Parameters DR203
The following is for label model, and the special requirements and functions can be customized.
|
Parameter Name |
Specific Parameter Values |
|
Labeling Accuracy |
± 1.0mm (except for products & labels' error) |
|
Labeling Speed |
40 to 80 pcs / min (related to products' size) |
|
Applicable Products' Diameter |
Ø 25mm ~ Ø 100mm |
|
Applicable Label's Size |
Length: 20mm ~ 290mm; Width: 20mm ~ 160mm; |
|

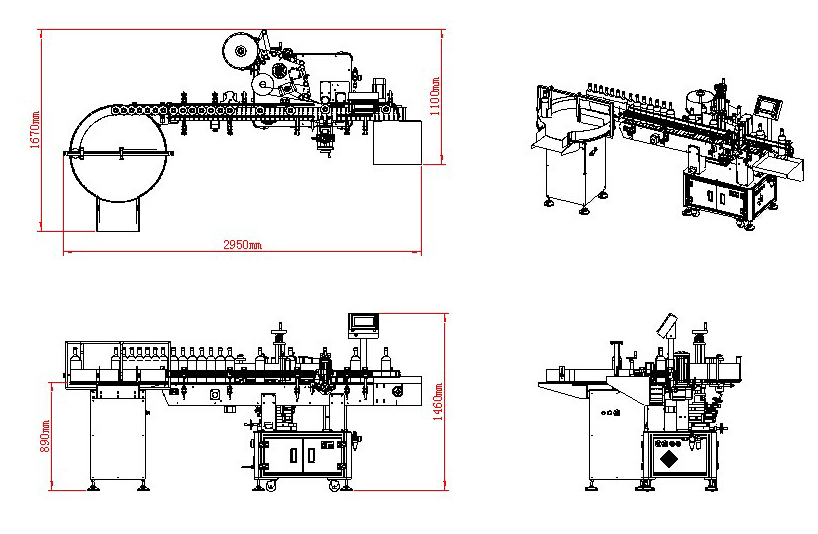

Machine's Size |
Approximately 1950mm × 1100mm × 1300mm
(length × width × height); |
|
Power supply |
220V/50HZ |
|
Total Weight |
Approximately 185Kg |
|
Applicable label’s inner diameter |
Ø76mm |
|
Applicable label’s outer diameter |
Ø 240mm |
|
Voltage |
220V |
Features
1: The main body of equipment is made of SUS304 and advanced Aluminum products.
2: The labeling heads is driven by the Server motor which imported from Japan.
3: Light sensor equipment is imported from both Japan and Germany
4: PLC Controlled by the human-machine interface with 60 memory units
5: Single worker’s operating, greatly saved the human power and high efficiency

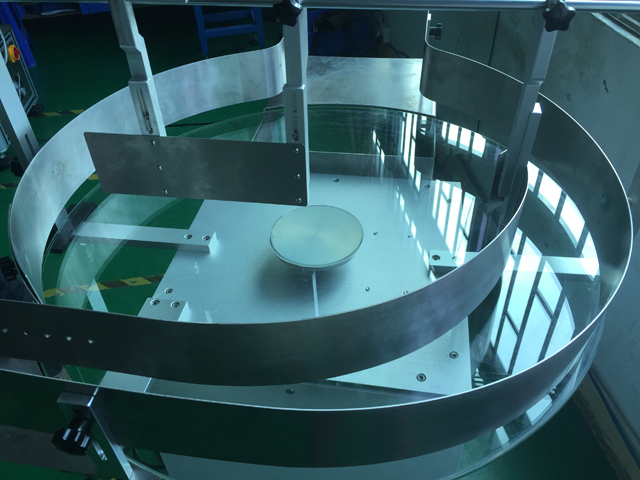

6: The machine has the function as bottle up righting, bottle-distributing, labeling flating as well as counting. autoamtic red wine labeling machine
7: The position, height, angle of labeling can be adjusted easily.
8: Equipped with the conveyor belt, which can connect to the production line.
◆Optional functions:
①Hot coding / Spurting;
②Automatic material feeding (consider with products);
③Automatic material receiving(consider with products);
④Another labeling device;
⑤Circumferential positioning labeling;
⑥Other features (according to customers’ requirements).
.jpg)
.jpg)

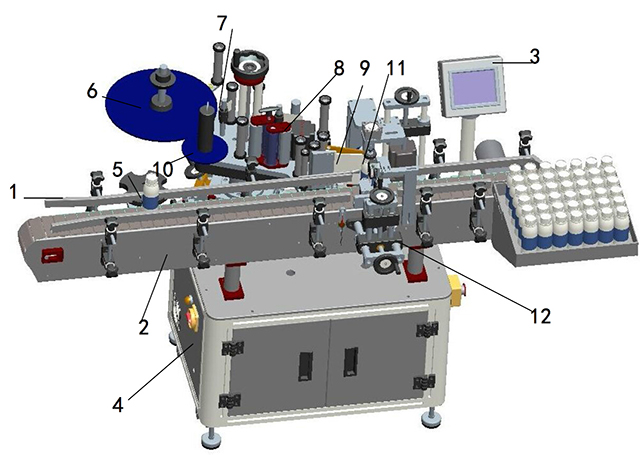

Machine Details

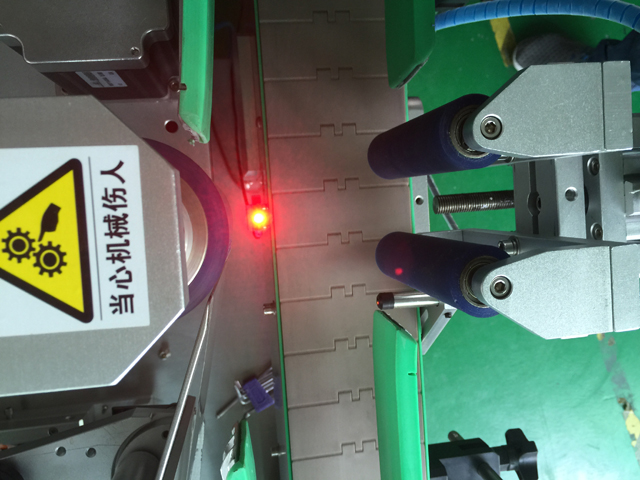

.jpg)
|
No. |
Item |
Function |
|
1 |
Guiding mechanism |
For guiding of the work-pieces, work-pieces of different sizes by adjusting the joint connecting the guide rods |
|
2 |
Transportation agencies |
The work-piece conveyor to the right for labeling and paste a good product away |
|
3 |
Touch screen |
Man-machine dialogue window, adjust various parameters |
|
4 |
Electrical box |
Labeling machine electrical control centers, arranging various controllers and PLC |
|
5 |
Bottle Separator |
By adjusting the motor speed to adjust the separation distance of the work-piece, the work-piece before the time to meet the labeling needs |
|
6 |
Trays |
Place labels |
|
7 |
Clamping mechanism |
Pressed labels, keep tabs tension, ensuring accurate labeling |
|
8 |
Traction mechanism |
Motor driven by pulling the end of paper, provide label power strip |
|
9 |
Stripping label plate |
Peel off the label. R angle formed by the label detour, effectively stripping the label |
|
10 |
Winding mechanism |
Recycled base paper |
|
11 |
Follow label bodies |
The label on the labeling label cover |
|
12 |
Positioning mechanism |
For positioning a work-piece |
◆ core principle: put the product to the conveyor belt, into the body of the bottle, the bottle body of the product after separation, the sensor detects the product passes the signal returns to the label control systems in place to control the corresponding motor control system and sends the label to be affixed to the product labeling position, while overlying label, a label attached to the action is completed.
◆ Procedure: put the product conveyor belt (which can be accessed line) -> product delivery -> Products of distance -> Product Testing -> Product positioning -> Labeling and covered label -> collect the product labeling.
Supportive label Making
1. The distance between each two labels is 2-4mm, a 3*3 mm square hole should be punched between each two labels if the label is transparent or non-square ;
2. The distance between label and the edge of backing paper is 2mm;
3. The labels’ backing paper is made from GLASSINE material, because this paper has good toughness in order to prevent being pulled cut;
4 The inner diameter of label roll is 76mm, the outer diameter is less than 260mm, arranged in a single row.
The process of making label above should be combined with your products.

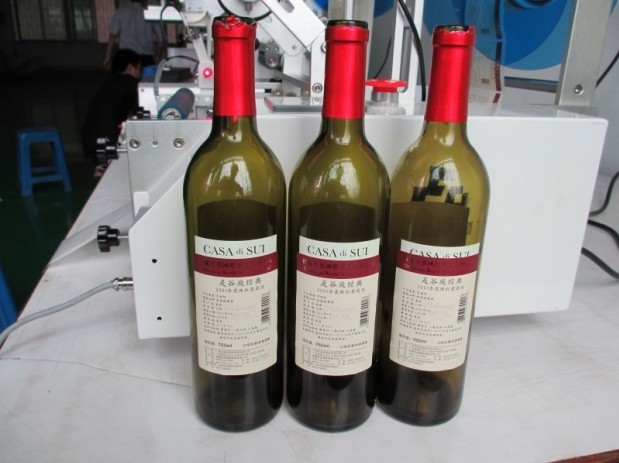

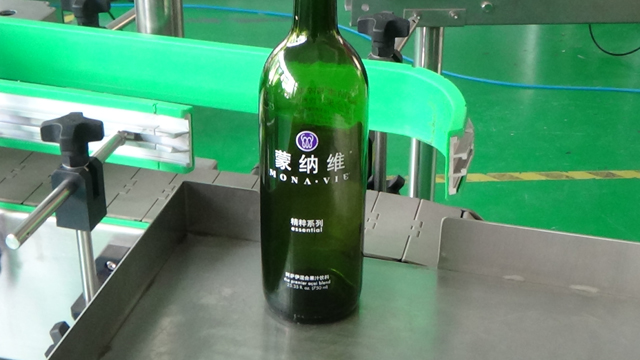

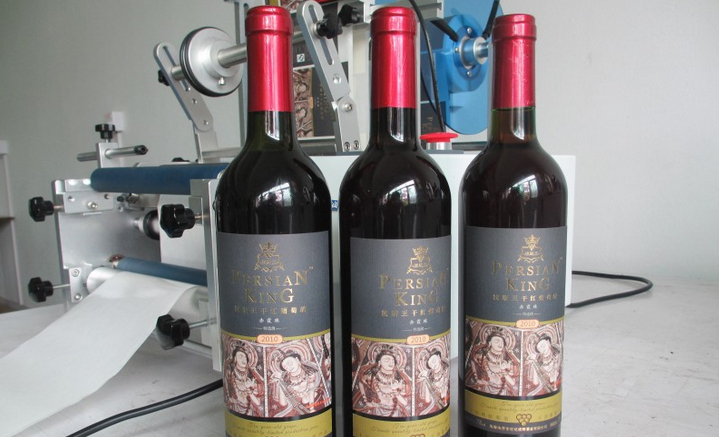

Samples: autoamtic red wine labeling machine
.jpg)
.jpg)
Other buying terms
1. Packing condition: plywood case
2. Delivery time: 20-30 working days after receive the deposit.
3. Payment term: TT, 30% deposit, balance before delivery.
4. Delivery term: FOB Shenzhen
5. Loading port: Shenzhen, China
6. Quality guarantee: The seller will provide free spare parts along with the machine.
7. Overseas Service and commissioning: If technician is requested from buyer, the seller will send the technician to user’s site for 7 days, the round international air ticket, Hotel and food would be arranged by buyer’s, and the buyer should offer USD 100.00/day for technician for extra days.
