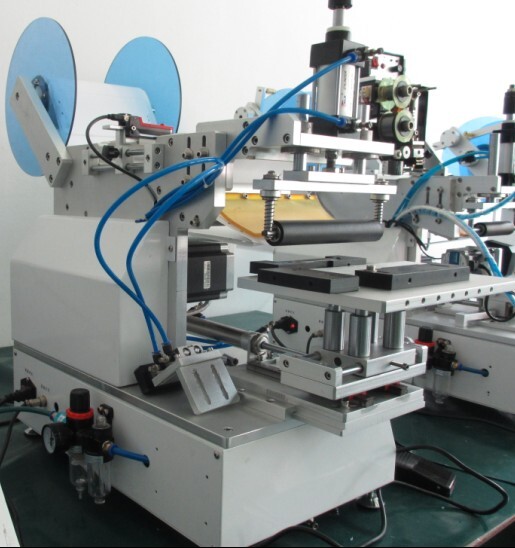

Model DR513 Desktop Type Semi Automatic Round Bottle Labeling Machine Rolling Non-Sticker Labelers Bottles Cards Sheets High Speed
Feature: Semi Automatic Round Bottle Rolling Labeling Machine
(1) precision, domestic original labeling technology, labeling accuracy of ± 0.2mm, meet the needs of high-precision labeling;
(2) Easy to operate, stripping standard, standard delivery, suction mark, labeling and other actions automatically cover standard, manual loading to complete the labeling process;
(3) safety, transmission components wrapped with pneumatic circuit arranged separately, to avoid an exception occurs, the use of safer;
(4) high stability, using stepper motors + PLC + electronic control system consisting of fiber optic sensors, equipment stability, long time working;
(5) Optional automatic scale turntable device, can significantly improve the efficiency of loading and unloading, improve labeling efficiency;
(6) Optional features and components:
① automatic feeding function;
② automatic rewinding function (combination of product considered);
③ other features (according to customer requirements).
Parameters: Semi Automatic Round Bottle Rolling Labeling Machine
Labeling accuracy: ±0.2mm
Labeling speed: 10～25Pieces / min
Applicable Dimensions (Length): 20mm～250mm
Applicable Product Size (width) 20mm～150mm
Applicable Dimensions (height) 0.2mm～120mm
Applicable Label Size: Length: 15mm～250mm
Width:15mm～150mm
Inner diameter of label roll: Φ76 mm
Label largest diameter: Φ280mm
Dimensions (L × W × H): 850mm×410mm×720mm
Power supply: 220V 50HZ Total Power 145W
Pressure (Mpa): 0.4～0.6Mpa
Model DR513 is more suitable for labeling curved or irregular containers is displayed as below:
.jpg)
.jpg)

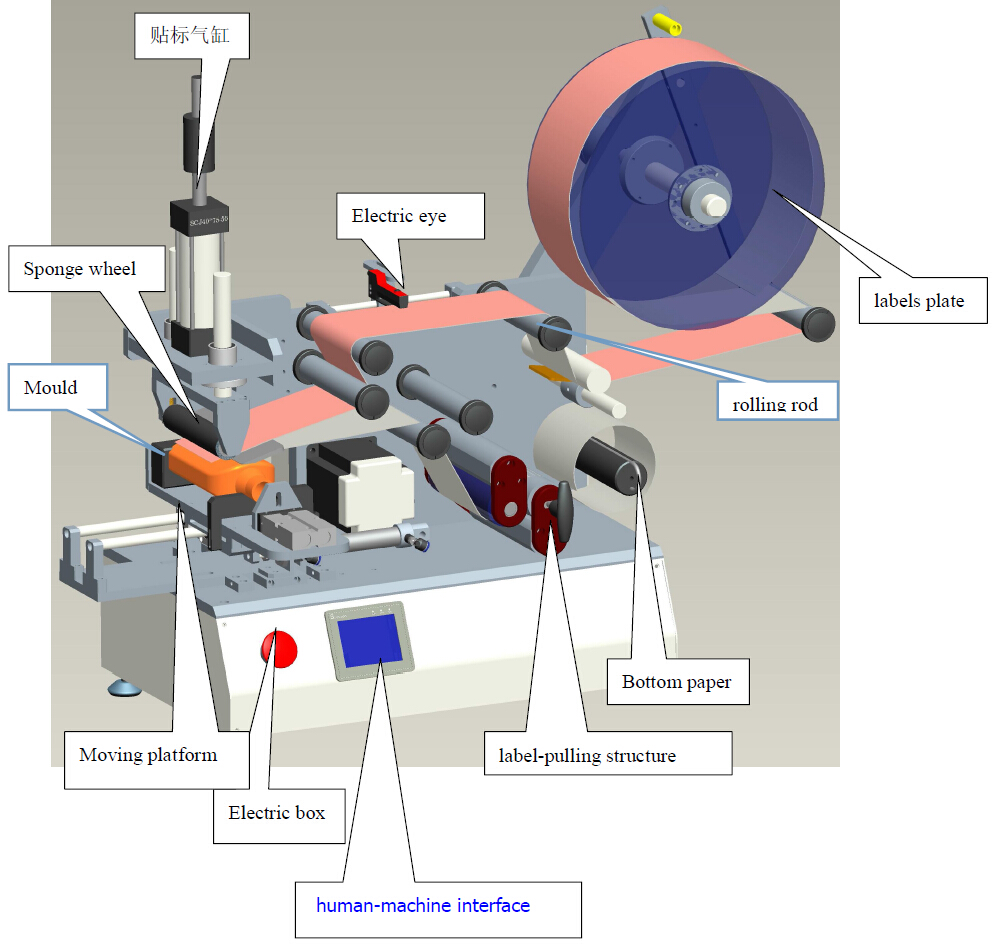

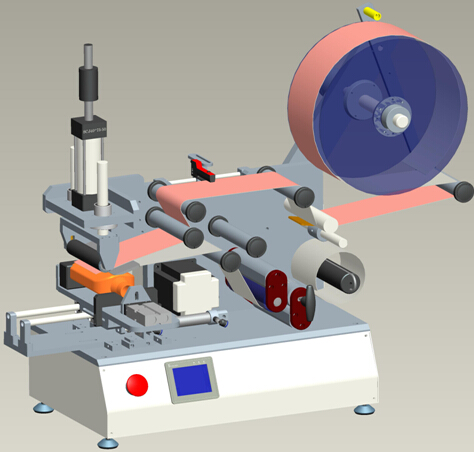

Details for DR511 machine

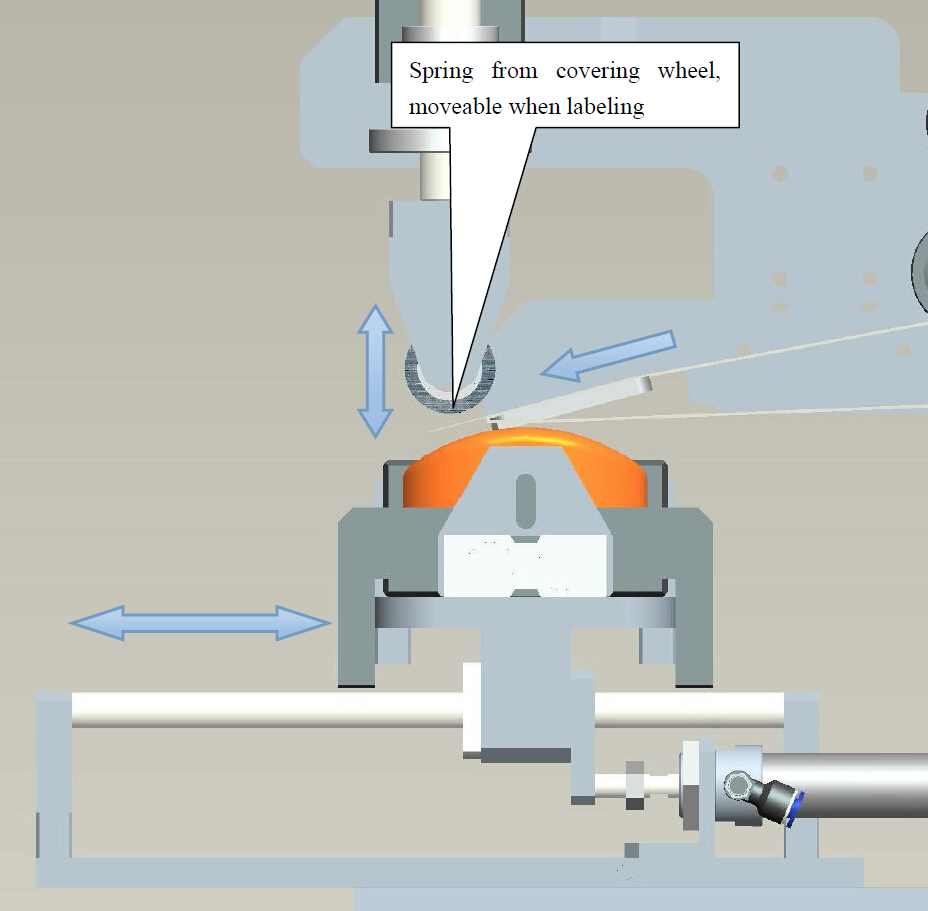

The basic purpose on semi automatic plane surface labeling machine semi automatic model DR513
.jpg)
◆ Applicable Label: Label, electronic monitoring code, bar code, etc.
◆ Application: require flat or curved, circular surface, concave, convex, or other surface attached label.
◆ Industry: Widely used in food, toys, cosmetics, electronics, pharmaceutical, metal, plastic, printing and other industries.
◆ Applications: SD card labeling, labeling and other batteries. (Canon Charger: no bubbles)

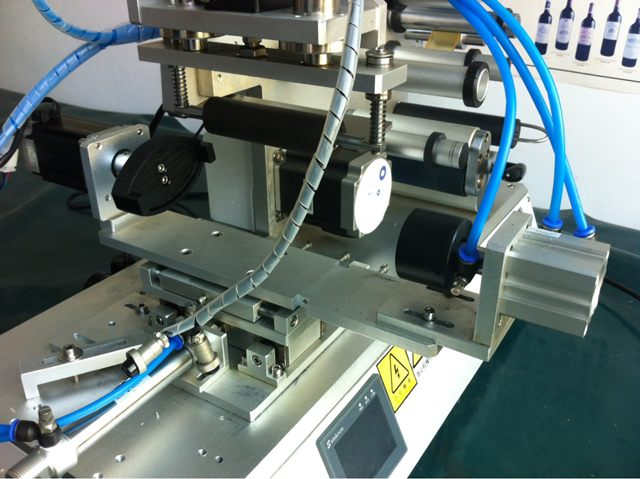

Auto reverse device for bottles double side labeling or full round labeling
.jpg)
.jpg)
.jpg)
.jpg)
Other buying terms
1. Packing condition: plywood case
2. Delivery time: 15-20 working days after receive the deposit.
3. Payment term: TT, 30% deposit, balance before delivery.
4. Delivery term: FOB Shenzhen
5. Loading port: Shenzhen, China
6. Quality guarantee: The seller will provide free spare parts along with the machine.
7. Overseas Service and commissioning: If technician is requested from buyer, the seller will send the technician to user’s site for 7 days, the round international air ticket, Hotel and food would be arranged by buyer’s, and the buyer should offer USD 100.00/day for technician for extra days.
