Automatic double sided flat surface labeling machine plane objects labeller equipment for bags cards
Automatic double sided flat surface labeling machine plane objects labeller equipment for bags cards

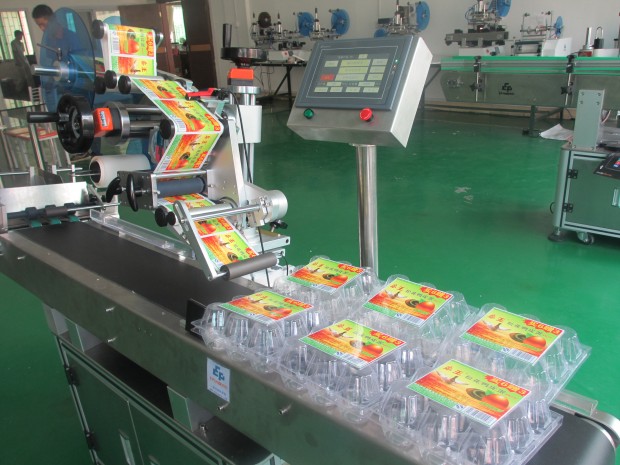

Model  501 Automatic double sided flat surface labeling machine plane objects labeller equipment for bags cards paper carton box




Label Requirements:
1. The distance between each two labels is 2-4 mm;
2. The labels’ backing paper is made from glassine material, because this paper has good toughness in order to    prevent being pulled apart
3. The inner diameter of label roll is 76 mm, the outer diameter is less than 260 mm, arranged in a single row.

The process of making label above should be combined with your products. The specific requirements please refer to the result of communication with our engineers!

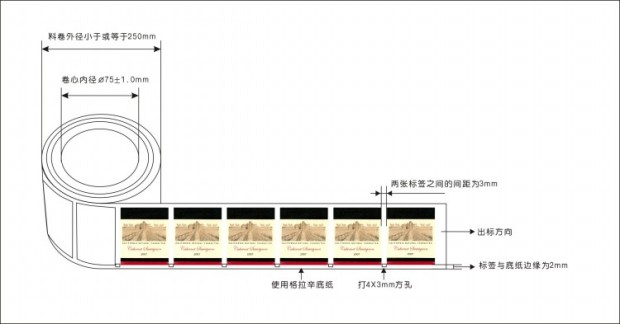

The below drawing is for reference.


Functional Features
(1) It can separate the card steadily, using advanced technology to do it, which is sorting and reverse wheel technology, card sorting rate is far higher than the general card separating mechanism;
(2) High speed, be aim at labeling the code check on the medicine box, it stable speed more than 150 pieces / minute;
(3) Widely application, can meet various labeling, such as cards, paper goods, it is suitable for unfold goods labeling;
(4) Accuracy labeling, using top roller to fix the work piece, smooth transmission, no bending, to ensure the accuracy of labeling;
(5) Simply adjustment, it has six degrees of freedom can be adjusted, the conversion between the different products become simple and time-saving;Automatic flat surface labeling machine

Operation PLC control system makes labeling machine easy to operate
Material Labeling machine’s main body is made of SUS304 stainless steel
Configuration Our labeling machines adopt Japan motor driving and photo sensor   and Taiwan control system
Option Device Reader: Read 2D codes, bar codes and other information, establish products’ database for products’ traceability.
All-purpose Electric Eyes: General electric eyes cannot detect transparent labels, Leuze Electric Eye imported from Germany should be chose to be supportive.
Ink-jet printer: Can be equipped with the mainstream ink-jet printer in the market, print at specified location on the label, which can be combined with labeling machines perfectly.
Coder: Use thermal coder to print production date, expiration date, batch number and other information.


Parameters: Model DR201
 Parameter Name  Specific Parameter Values
Labeling Accuracy ± 01mm (except for products & labels' error)
Labeling Speed 40 to 120 pcs / min (related to products' size)
Applicable Products' Size Length: 40mm ~ 400mm; Width: 40mm ~ 200mm;Height:0.2mm~150mm
Applicable Label's Size Length: 6mm ~ 150mm; Width(backing paper): 15mm ~ 130mm;

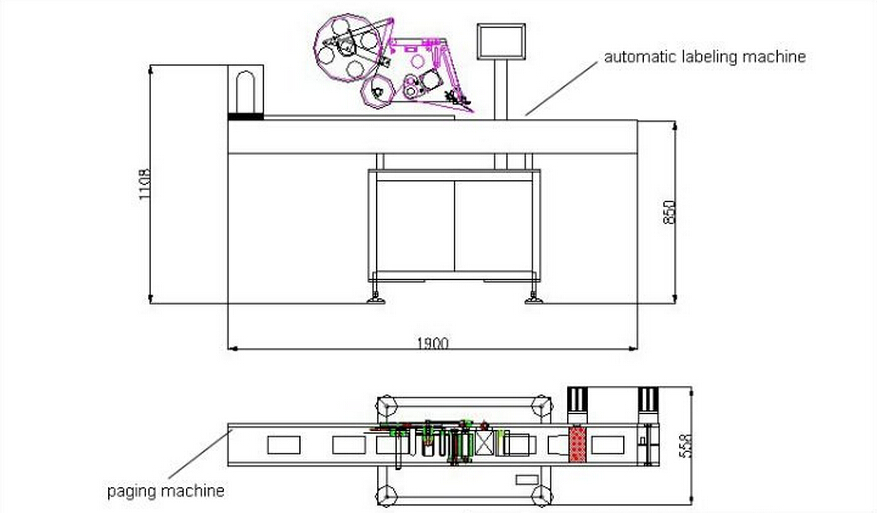

Machine's Size Approximately 1600mm × 780mm × 1400mm
(length × width × height);
Power supply 220V/50HZ
Total Weight Approximately 180Kg
Applicable label’s inner diameter Ø76mm
Applicable label’s outer diameter Ø 240mm
Voltage 220V



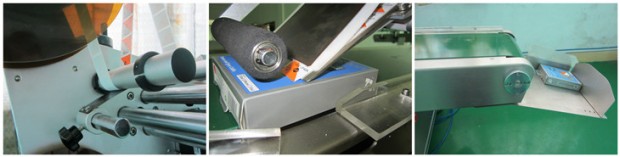

Machine details:
Automatic flat surface labeling machine

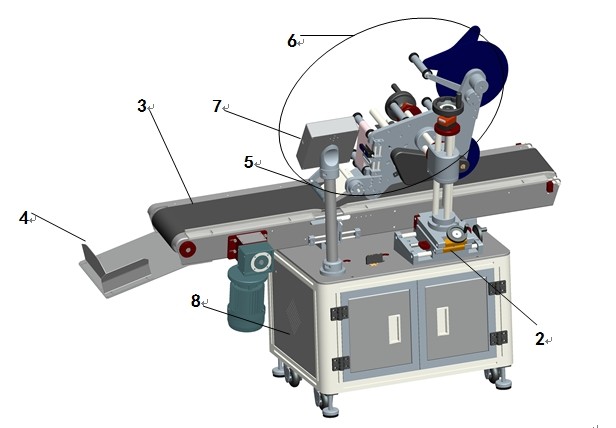

NO.  Mechanism’s Name Mechanism's Description
1 Machine that is used to distribute the product Separate a pile of products into single
2 Main Switch The main switch of the whole machine
3 The mechanism that used to deliver products Deliver the products to the labeling area, after labeling, carrying them to the receiving machine
4 The material receiving machine Collect the labeled product
5 The mechanism that used to cover the label Reinforce the process of labeling
6 The head of labeling The main component of labeling, achieving labeling function
7 Touch screen Man-machine interface, you can adjust a variety of parameter
8 Electric Box The electrical control center, layout all kinds of control machine and PLC

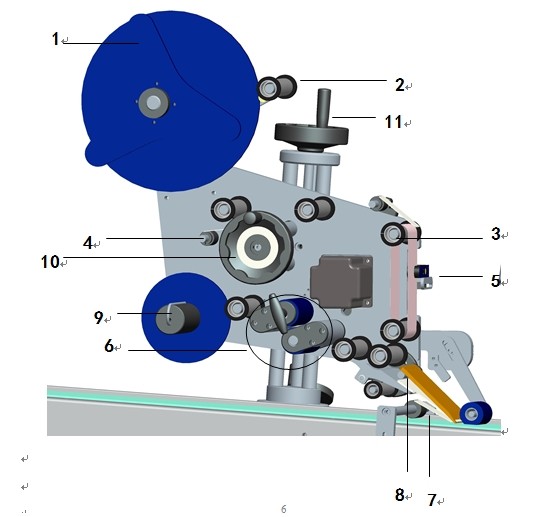

NO.     Mechanism’s Name Mechanism's Description
1 Feed Tray Ready to put on Label Volumes
2 Brake Be used to stop the label, to prevent loosening the label, keeping the labels’ tension
3 Roller For label's detour
4 Compress Tightly the Label Keep Down the Label to ensure that the Label Tension
5 The Shelf of the Electric Eye
6 Drawing Mechanism By Pulling the Backing Sheet, Peel off the Label, the Degree of Tightness can be Adjusted
7 Label Peeling Board Peel the label
8 The Mechanism that Used to Press the Label Be used to press the label
9 The material receiving machine Retrieve the Label’s Backing Sheet
10 Cross adjustment
11 longitudinal adjustment Be used to adjust the head of labeling go up and down


Working Process
◆ Core working principle :When the sensor detects the product, the signal will be sent to the labeling control system, after dealing with the signal by PLC, sending the label and labeling on the products setting position at the right time, when the products through the over-labeling device, reinforce labeling, by the time, a movement of labeling finished. Automatic flat surface labeling machine

◆Procedure:Put the product->The products will be separated and delivered(achieve automatically)->Labeling(achieve automatically)->Collect labeled products(achieve automatically)->Take away the products.

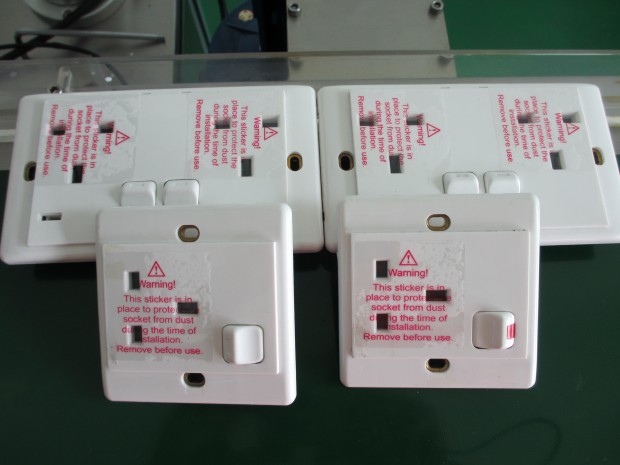

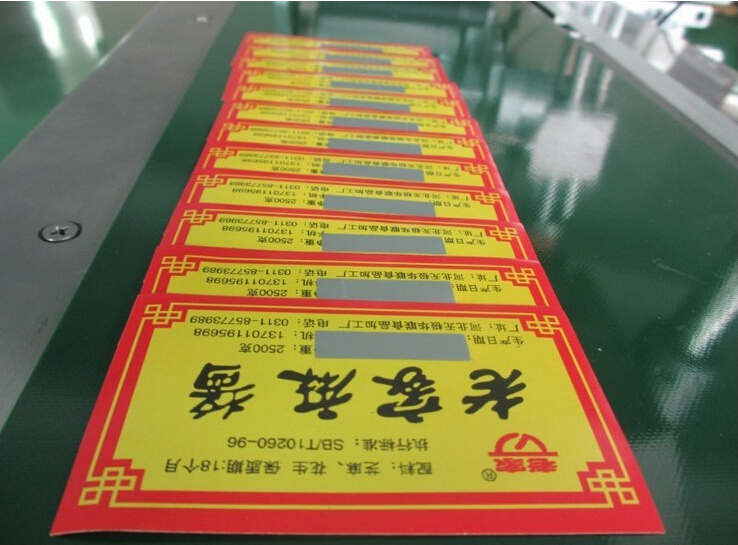

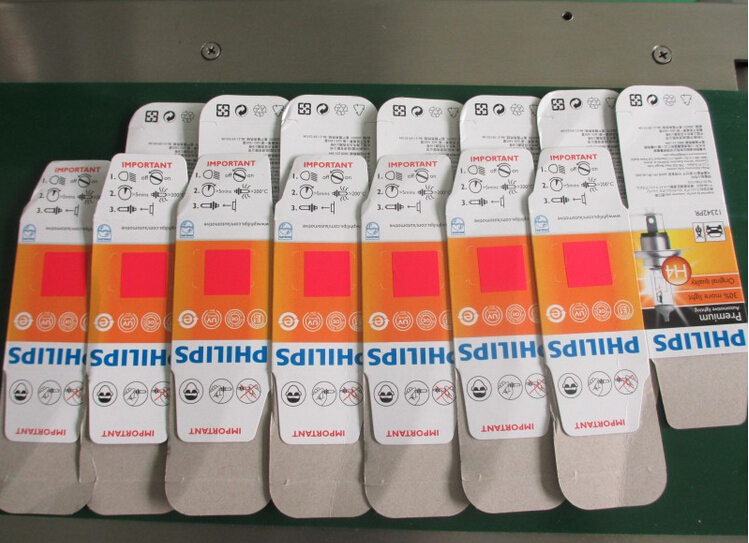

Samples:







Other buying terms


1. Packing condition: plywood case

2. Delivery time: 20-30 working days after receive the deposit.

3. Payment term: TT, 30% deposit, balance before delivery.
4. Delivery term: FOB Shenzhen
5. Loading port: Shenzhen, China
6. Quality guarantee: The seller will provide free spare parts along with the machine.

7. Overseas Service and commissioning:  If technician is requested from buyer, the seller will send the technician to user’s site for 7 days, the round international air ticket, Hotel and food would be arranged by buyer’s, and the buyer should offer USD 100.00/day for technician for extra days.
